Permanent Magnet DC Motors (PMDC Motors) for Industrial OEMs & Distributors

We manufacture industrial-grade Permanent Magnet DC (PMDC) motors designed for equipment OEMs, machine builders, and wholesale distributors. Engineered with high-coercivity permanent magnets and robust mechanical commutators, our PMDC drives deliver reliable high starting torque, smooth speed control, and direct compatibility with DC power supplies.

Unlike wound-field DC motors, PMDC motors use permanent magnets to establish the stator magnetic field. The armature carries the windings and rotates with the commutator, while brushes provide the electrical connection between the stationary circuit and rotating armature. Because the permanent magnets provide the field flux without a separate field winding, the motor can achieve a more compact construction and avoid the electrical losses associated with field excitation.

Permanent Magnet Dc Motor 90v
Our 90V Permanent Magnet DC Motor is designed for automation equipment, CNC
machinery, and industrial control systems.
Maximum torque: 0.4 – 4.5 N·m
Efficiency:...
1 Hp Permanent Magnet Dc Motor
This 1 HP Permanent Magnet DC Motor is powerful, has stable power output, low noise, and is rated at 1 horsepower (approximately 746W). It can operate on different DC voltage platforms such as...
Dia.110 Permanent Magnet Motor
The Auric Dia. 110 permanent magnet motor (model 110ZYT025) features a rated power of 350W, a rated voltage of 24V DC, a rated speed of 3000 RPM, and a rated torque of 1.15 N·m; it provides...
DC Permanent Magnet Brushed Motor
The Auric DC permanent magnet brushed motor offers a simple, reliable, and easily controllable DC drive solution; it is easy to integrate and control, ensures stable supply, and can be matched to...

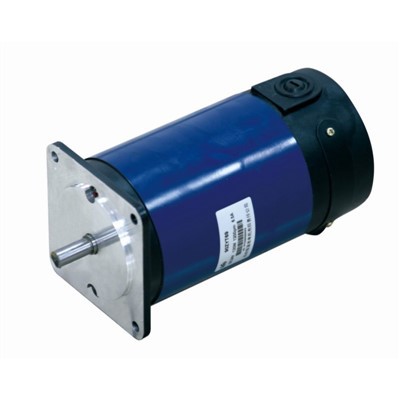

Direct Current Permanent Magnet Motor
The DC permanent magnet motors produced by AURIC have high torque density and high energy efficiency. Each motor is carefully designed to provide reliable performance in the fields of automation,...

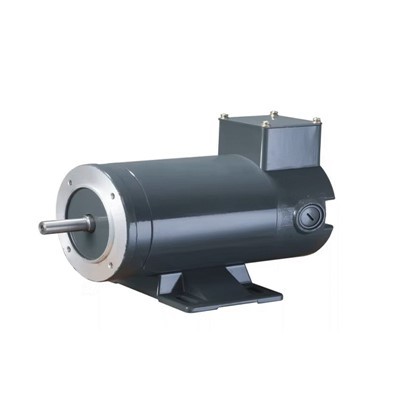

Permanent Magnet Dc Motor 180v
Our 180V permanent magnet DC motor is an ideal choice for powering industrial automation and precision machinery. Its high-density NdFeB permanent magnets deliver stable, high torque output....
12 Volt Dc Permanent Magnet Motor
This product operates on a 12V DC power supply and its design focuses on addressing three key practical issues: powerful starting, smooth operation, and minimal torque degradation over long-term...

Technical Specifications

Parameter	Specification
Power Range	10 W–3,000 W (0.01–4 HP)
Rated Voltage	12 VDC / 24 VDC / 48 VDC / 90 VDC / 180 VDC / Custom DC Voltages
Rated Speed	1,000–6,000 RPM; custom winding configurations available
Continuous Torque	0.1–10 Nm; up to 150 Nm with integrated gearbox
Starting Torque	Up to 300%–400% of rated continuous torque*
Duty Cycle	S1 (Continuous Duty) / S2 (Short-Time Duty) / S3 (Intermittent Duty)
Insulation Class	Class F (155°C) / Class H (180°C)
Protection Rating	IP44 / IP54 / IP65; washdown and sealed options available
Brush Lifespan	2,000–5,000+ hours, depending on load, speed, duty cycle, and brush grade*
Feedback Options	Optical Encoder / Magnetic Encoder / Tachometer / Hall Sensors
Gearbox Options	Spur / Planetary / Worm / Right-Angle Helical
Compliance & Certification	CE / RoHS / ISO 9001 / REACH Compliant

Key Advantages

Compact Stator Design with Zero Field Power Losses

By utilizing high-grade ceramic or rare-earth permanent magnets in place of field excitation windings, our PMDC motors eliminate stator copper losses entirely.

Reduced Frame Size: Achieves higher power density in tight OEM equipment envelopes.

Direct DC Battery Operation: Ideal for mobile, automotive auxiliary, and solar-powered applications without complex inverter systems.

Instant Field Establishment: Delivers maximum magnetic flux immediately upon startup for consistent response.

Exceptional High Starting Torque for Heavy-Load Starts

Because electromagnetic torque is directly proportional to armature current (Torque ∝ Armature Current), our PMDC designs handle high-inertia and loaded-start machinery effortlessly.

High Breakaway Torque: Up to 4x rated torque to overcome initial static friction.

Overload Capability: Built with heavy-duty armature copper windings to handle short-duration peak loads in conveyors and linear actuators.

Predictable Linear Speed-Torque Characteristics

Our PMDC motors feature a near-linear speed-torque curve across their primary operating range.

Simple Voltage Control: Speed can be easily adjusted by altering input DC voltage via cost-effective PWM or SCR controllers.

Dynamic Responsiveness: Predictable armature reaction allows smooth acceleration, deceleration, and reversing.

Commutator & Brush Design for Extended Service Life

Brush and commutator wear is a key concern for PMDC motor buyers. We prioritize long-term mechanical reliability by optimizing the contact interface:

Premium Brush Materials

Graphite, copper-graphite, or silver-graphite brushes selected based on voltage and current density requirements.

Precision Diamond-Turned Commutators

Ensures high concentricity and minimal surface roughness to reduce brush sparking and wear.

Constant-Force Springs

Maintains uniform brush pressure throughout the component lifespan to prevent premature arc erosion.

Accessible Serviceability

Designed with external brush cap access or long-life internal assemblies for low-maintenance OEM designs.

OEM Customization & Gearmotor Integration

Customization Scope

Mechanical

Custom shaft diameters, flat D-shafts, keyways, splines, threaded ends, dual extensions, and custom IEC/NEMA flanges.

Electrical

Tailored winding configurations for precise RPM/Voltage matching, specialized thermal protectors (PTC/Thermistors), and custom lead wire lengths/connectors.

Gearbox Assembly

Factory-integrated planetary gearboxes for high-precision low-speed drive, or worm gearboxes for self-locking industrial actuators.

Environmental

Corrosion-resistant surface coatings, stainless steel shafts, and IP65 washdown sealing for food-processing or outdoor equipment.

PMDC Motor vs. Other DC Technologies

Feature	PMDC Brushed Motor	Wound-Field DC Motor	Brushless DC (BLDC) Motor
Field Generation	Permanent Magnets	Excitation Windings	Permanent Magnets
Commutation Method	Mechanical Brushes	Mechanical Brushes	Electronic Drive / Inverter
Controller Cost	Low (Simple PWM / SCR)	Low to Moderate	High (Dedicated Inverter)
Starting Torque	Very High	High	High
Compactness	High	Low to Moderate	Very High
Maintenance	Periodic Brush Check	Brush & Field Maintenance	Virtually Maintenance-Free
Best For	Cost-sensitive OEMs, Battery equipment, High starting torque	Heavy industrial DC plants	High-speed, Continuous high-duty systems

Quality Control & Factory Testing

Armature Quality Inspection

Dynamic rotor balancing, winding resistance, and surge insulation testing.

Commutator Verification

Concentricity runout check and high-voltage Hi-Pot breakdown testing.

Final Assembly Testing

No-load current and RPM check
Full-load torque and temperature rise evaluation (ISO/IEC compliant)
Insulation resistance (Megaohm test)
Acoustic noise dB(A) and vibration testing

Commercial Terms & Wholesale Supply

Sample Delivery	10 to 20 business days for customized OEM engineering samples.
Mass Production Lead Time	25 to 35 business days.
Minimum Order Quantity (MOQ)	Flexible MOQ for standard frame sizes; custom OEM projects evaluated per design.
Quality Warranty	12 to 18 months standard factory warranty.
Export Documentation	Commercial Invoice, Packing List, COA, CE Certificate, RoHS Test Report, Certificate of Origin.

FAQ

Q: Does a PMDC motor require a complex electronic controller to operate?

A: No. A PMDC motor can run directly from a pure DC power source (such as a battery or DC power supply) at a fixed speed. However, to adjust speed, control acceleration, or regulate torque, a simple PWM (Pulse Width Modulation) or SCR controller is used.

Q: What is the average lifespan of the brushes in your PMDC motors?

A: Depending on the operating speed, load profile, duty cycle, and ambient environment, our standard brushes last between 2,000 and 5,000 operating hours. For demanding applications, we offer heavy-duty copper-graphite brush options and accessible brush caps for easy replacement.

Q: Can PMDC motors be operated in reverse?

A: Yes. Reversing the rotation of a PMDC motor is simple—just reverse the polarity of the applied DC voltage to the motor terminals.

Q: How do I select between a Spur, Planetary, or Worm Gearbox for my PMDC motor?

A: Planetary gearboxes offer high torque and high efficiency in a compact coaxial layout; Worm gearboxes provide right-angle power transmission and self-locking capabilities; Spur gearboxes offer a cost-effective solution for lighter duty applications. Our technical team can help calculate the exact gear ratio and torque required.

Q: Can you match the mounting dimensions of our existing motor supplier?

A: Yes. We frequently design custom front flanges, mounting hole patterns, and shaft dimensions to serve as direct drop-in replacements for existing OEM equipment.

Q: What technical files do you provide for engineering evaluation?

A: We provide complete technical datasheets, 2D dimensional drawings (PDF/DWG), 3D CAD models (STEP/IGES), performance curves (Speed-Torque-Efficiency-Current), and factory inspection reports.
