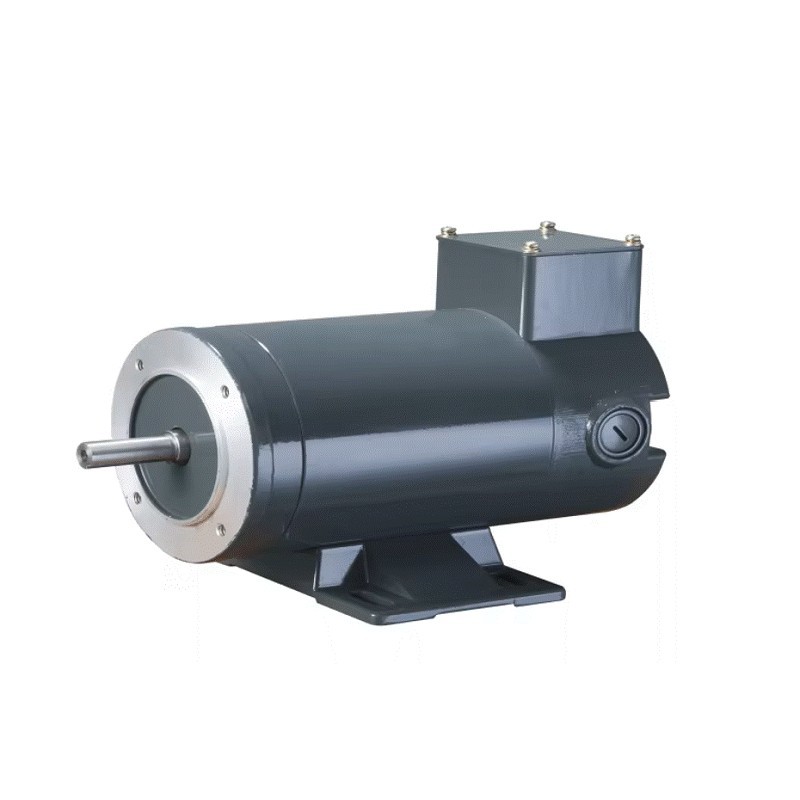

Product Overview

The 12-volt DC permanent magnet motor is primarily designed for applications requiring low-voltage power supply and high stability and response speed.

Compared to excitation-type DC motors, it directly establishes its magnetic field using high-performance permanent magnets, resulting in a simpler structure and higher efficiency. It can still output reliable power under 12V operating conditions, making it particularly suitable for systems requiring frequent starts and stops, speed adjustments, and long-term operation.

Core Performance and Power Characteristics

Rated Voltage: 12V DC

Magnetic Field Type: Permanent Magnet

Starting Characteristics: High starting torque, no lag at low speeds

Operating Characteristics: Linear speed output, fast response to load changes

Efficiency Performance: Significantly higher efficiency than wound-rotor motors under the same power conditions

Stability and Current Control

The permanent magnet field is stable and does not depend on external excitation current.

The operating current fluctuation is small, which is beneficial for power system design.

Under continuous operation, temperature rise is controllable, and rapid performance degradation is not likely.

This is especially important for battery-powered devices, portable systems, or devices with high power stability requirements.

Performance parameter table

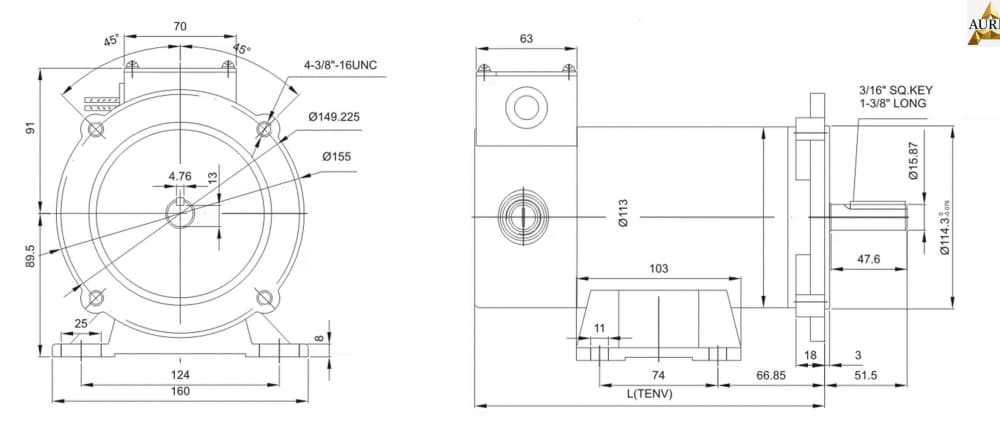

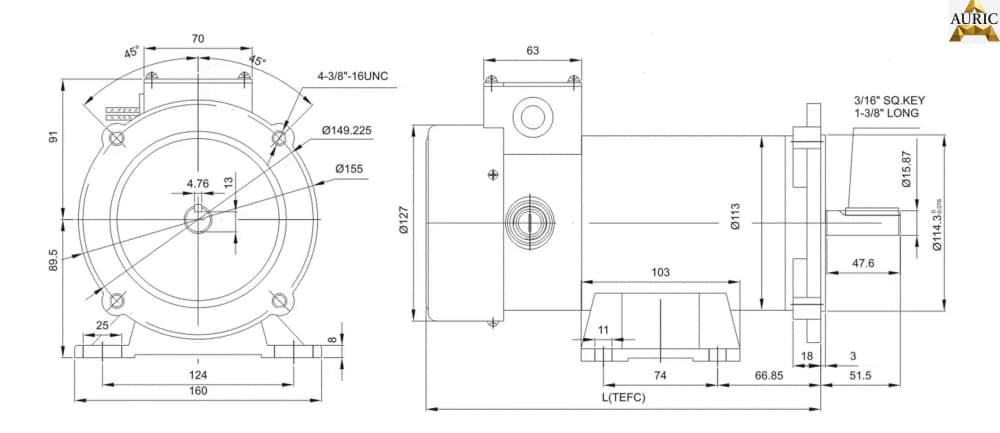

product-1000-433

Performance Parameter
Type	Voltage(V)	Rated Speed(r/min)	Power (HP)	Torque (N·m)	Current(A)	Motor Length L-mm(TENV)	Motor Length L-mm(TEFC)
113ZYT180-1/4-1750	180	1750	1/4	1.03	1.39	197	234
113ZYT90-1/4-1750	90	1750	1/4	1.03	2.78	197	234
113ZYT12-1/4-1750	12	1750	1/4	1.03	20	197	234
113ZYT24-1/4-1750	24	1750	1/4	1.03	10	197	234
113ZYT180-1/3-1750	180	1750	1/3	1.37	1.85	208	234
113ZYT90-1/3-1750	90	1750	1/3	1.37	3.7	208	234
113ZYT12-1/3-1750	12	1750	1/3	1.37	28	208	234
113ZYT24-1/3-1750	24	1750	1/3	1.37	14	208	234
113ZYT180-1/2-1750	180	1750	1/2	2.05	2.78	219	256
113ZYT90-1/2-1750	90	1750	1/2	2.05	5.56	219	256
113ZYT12-1/2-1750	12	1750	1/2	2.05	40	219	256
113ZYT24-1/2-1750	24	1750	1/2	2.05	20	219	256

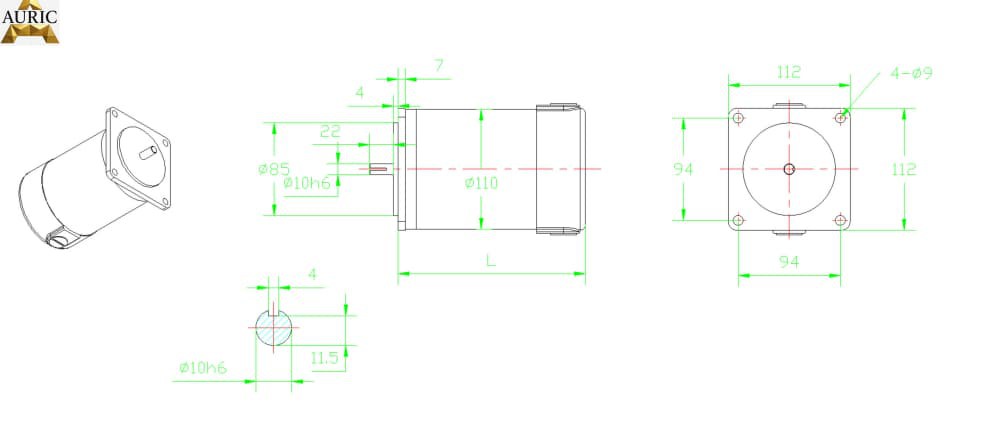

product-1000-433

Performance Parameter
Type	Voltage(V)	speed (r/min)	power (W)	Torque (mN·m)	Current(A)	Speed tolerance (r/min)	Motor Length(L-mm)
110ZYT01	110	1500	245	1560	3	100	188
110ZYT02	220	1500	245	1560	1.5	100	188
110ZYT03	110	3000	400	1274	4.8	200	188
110ZYT04	220	3000	400	1274	2.4	200	188
110ZYT05	24	3000	400	1274	22.5	200	188
110ZYT06	220	1000	200	1910	1.3	100	188
110ZYT09	24	1500	245	1560	14	100	188
110ZYT14	220	4000	600	1430	3.8	200	188
110ZYT15	12	2500	200	2050	24	150	188
110ZYT21	200	4000	520	1242	3.7	200	188
110ZYT22	24	2500	200	2050	12	150	188
110ZYT23	220	2250	300	1273	1.8	150	188
110ZYT36	36	1200	185	1470	7	100	188
110ZYT51	110	1500	375	2390	4.5	100	218
110ZYT52	220	1500	375	2390	2.3	100	218
110ZYT53	110	3000	700	2230	8.5	100	218
110ZYT54	220	3000	700	2230	4.2	100	218
110ZYT55	24	1500	375	2390	22	100	218
110ZYT58	110	1750	400	2050	4.8	100	218
110ZYT66	220	450	125	2653	0.9	50	218
110ZYT76	48	2300	400	1662	12	150	218
110ZYT78	12	2500	400	1528.2	48	150	218
110ZYT79	24	2500	400	1528.2	24	150	218

Manufacturing Process

Stator and rotor magnetic circuits are optimized through calculation to reduce ineffective magnetic losses.

Key bearings are selected to meet the specifications suitable for low-voltage, high-speed operating conditions, reducing mechanical noise.

Windings use enameled wire with a higher temperature resistance rating to improve service life.

No-load, load, and current tests are performed before leaving the factory to ensure consistency.

It's not just about "rotating," but about maintaining consistency even during mass production.

Compatibility and System Adaptation

Compatible with various 12V DC motor controllers/speed controllers

Can be used in PWM speed control systems

Supports forward and reverse rotation control

Easy to integrate into existing 12V power supplies or battery systems

Customization available based on project requirements, including shaft type and mounting method

Typical Application Scenarios

Small Automated Mechanisms: Fast response, controllable movements

Medical and Laboratory Equipment: Stable operation, low electromagnetic interference

Pumps and Fan Systems: Strong continuous operation capability under low voltage

Mobile Devices/Battery-Powered Systems: High efficiency, better battery life

Intelligent Device Actuators: Frequent start-stop but less prone to overheating

FAQ

I. What is the difference between a 12-volt DC permanent magnet motor and a regular 12V DC motor?

Permanent magnet motors require no excitation current, resulting in higher efficiency, simpler structure, and better long-term operational stability.

II. Is it suitable for continuous operation?

Yes. This motor is designed with continuous operation and temperature rise control in mind.

III. Which controllers can it be used with?

It can be used with a standard 12V DC motor speed controller, supporting PWM speed control.

IV. Can the torque be customized?

Yes. Winding parameters and magnetic circuit design can be adjusted according to application requirements.

V. Is bulk supply and customization supported?

Yes, suitable for long-term procurement by OEMs.

Get Specifications and Selection Advice

If you are looking for a stable, efficient DC Permanent Magnet Motor suitable for long-term use in a 12V system, we can provide more suitable selection advice based on your application conditions, load requirements, and control method.

Please contact me for technical specifications, pricing, and sample information.
