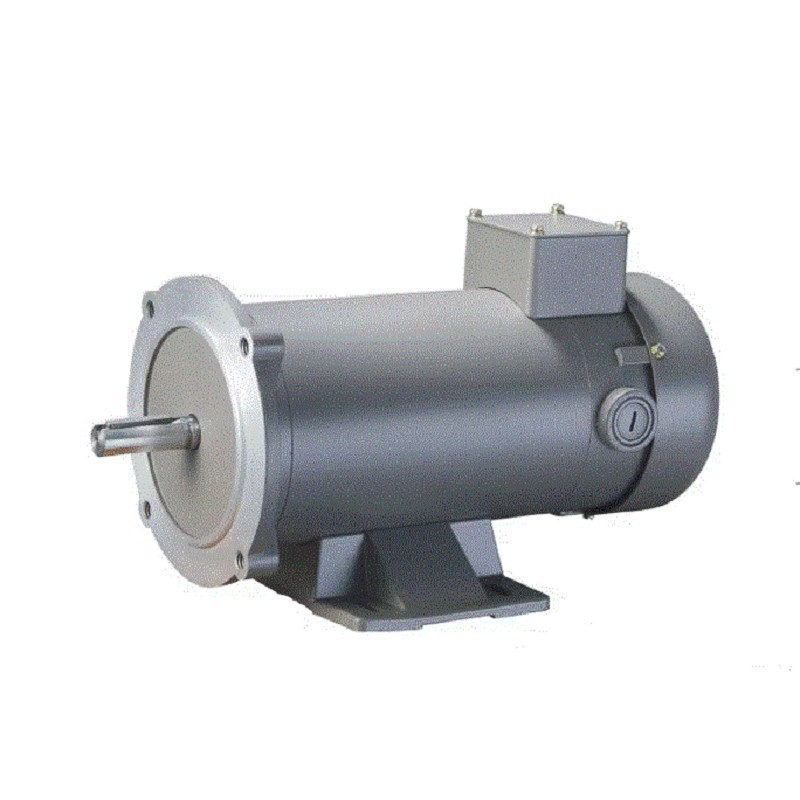

Product Overview
The 1 HP Permanent Magnet DC Motor produced by AURIC is a high-performance PMDC (Permanent Magnet Direct Current) motor with excellent compatibility.
It delivers high torque even at low current, starts quickly, and maintains a stable speed, significantly improving equipment efficiency and reducing energy consumption.
Technical Specifications
Rated Power： 1 HP / 746 W
Rated Voltage： 12V / 24V / 90V / 180V DC(Optional)
Rated Speed： 1500 – 3000 RPM
Rated Current： 6A – 9A(Depends on voltage)
Max Torque： 4.5 N·m
Efficiency： ≥85%
Insulation Class： F(155°C)
Protection Class： IP54 / IP65(Optional)
Cooling Type ：Natural cooling / external air cooling
Core Advantages
1.Rare earth permanent magnets enhance magnetic fields and improve efficiency by 20%.
The motor utilizes high magnetic energy product, resulting in more concentrated magnetic flux density and lower losses. Compared to traditional ferrite motors, it improves energy efficiency by 15–20% and offers more stable output power.
2.High Torque Output, Fast Response
Through an optimized magnetic circuit design and pure copper winding layout, the 1HP PMDC motor achieves high starting torque at low speeds and offers fast acceleration response, making it ideal for automation systems requiring frequent starts, stops, and reversals.
3.Smooth current flow and quiet operation
A high-precision commutator and low-noise carbon brush structure ensure low operating noise levels of ≤55 dB.
Smooth current output reduces electromagnetic interference (EMI) and extends the life of the control system.
4.Wide Voltage Compatibility
The same motor series supports 12V, 24V, 90V, and 180V voltage platforms, facilitating integration with various controllers (PWM, SCR, and PLC).
This flexible adaptability allows OEM customers to standardize configurations across different devices, reducing overall costs.
5.Stable design and long service life.
The stator utilizes a laminated structure of 0.35mm high-permeability silicon steel sheets to reduce eddy current losses.
The armature is vacuum-impregnated for moisture resistance, vibration resistance, and short-circuit resistance.
Combined with NSK precision bearings, the motor maintains high reliability even under long-term, high-load operation.
Performance parameter table
| Performance Parameter | |||||||
| Type | Voltage(V) | Rated Speed(r/min) | Power (HP) | Torque (N·m) | Current(A) | Motor Extent L-mm(TENV) | Motor Extent L-mm(TEFC) |
| 123ZYT180-3/4-1750 | 180 | 1750 | 3/4 | 3.07 | 4.17 | 250 | 286 |
| 123ZYT90-3/4-1750 | 90 | 1750 | 3/4 | 3.07 | 8.34 | 250 | 286 |
| 123ZYT12-3/4-1750 | 12 | 1750 | 3/4 | 3.07 | 62 | 250 | 286 |
| 123ZYT24-3/4-1750 | 24 | 1750 | 3/4 | 3.07 | 31 | 250 | 286 |
| 123ZYT180-1.0-1750 | 180 | 1750 | 1.0 | 4.09 | 5.56 | 285 | 321 |
| 123ZYT90-1.0-1750 | 90 | 1750 | 1.0 | 4.09 | 11.12 | 285 | 321 |
| 123ZYT12-1.0-1750 | 12 | 1750 | 1.0 | 4.09 | 83 | 285 | 321 |
| 123ZYT24-1.0-1750 | 24 | 1750 | 1.0 | 4.09 | 41 | 285 | 321 |

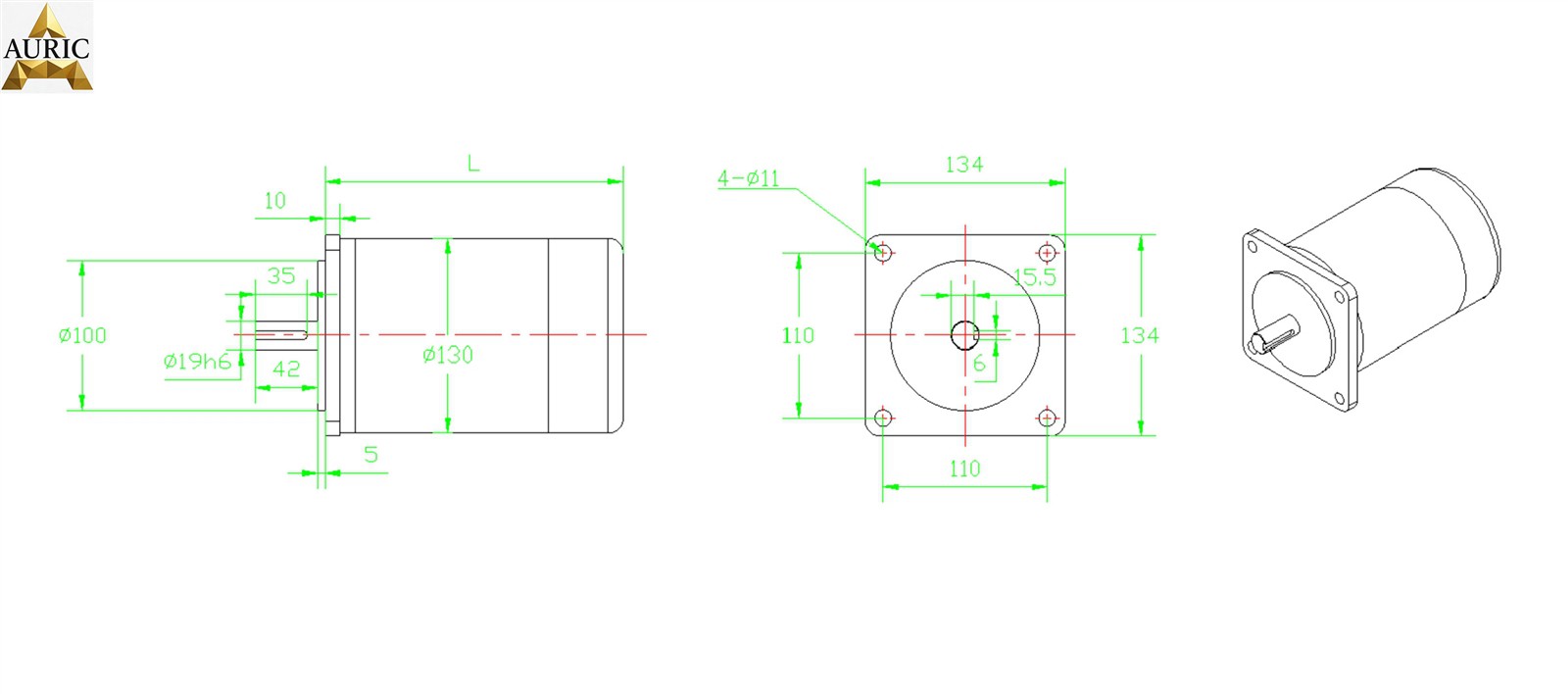

| Performance Parameter | |||||||
| Type | Voltage(V) | speed (r/min) | power (W) | Torque (mN·m) | Current(A) | Speed tolerance (r/min) | Motor Length(L-mm) |
| 130ZYT01 | 110 | 1500 | 600 | 3824 | 7.2 | 100 | 230 |
| 130ZYT09/H1 | 24 | 2500 | 800 | 3059 | 48 | 150 | 230 |
| 130ZYT10/H1 | 220 | 600 | 300 | 4775 | 1.8 | 50 | 230 |
| 130ZYT12 | 220 | 1500 | 600 | 3822 | 3.8 | 100 | 230 |
| 130ZYT13/H1 | 12 | 2500 | 800 | 3059 | 95 | 150 | 230 |
| 130ZYT15/H1 | 12 | 1500 | 700 | 4456.7 | 75 | 100 | 230 |
| 130ZYT18/H1 | 180 | 1750 | 750 | 4095 | 5.5 | 100 | 230 |
| 130ZYT52/H1 | 220 | 1500 | 750 | 4775 | 4.5 | 100 | 278 |
| It can be customized according to your requirements, including parameters such as voltage, power, rotational speed, and installation dimensions. | |||||||
Manufacturing & Quality Control
Zibo AURIC Electromechanical Technology Co., Ltd. utilizes fully automated winding, vacuum varnishing, and dynamic balancing processes to ensure consistent quality for each motor.
Before shipment, each motor undergoes the following:
Armature insulation testing
Torque and speed testing
72-hour load aging test
Noise and vibration analysis
If you're looking for a 1HP, high-torque, and energy-efficient permanent magnet DC motor, please contact Zibo AURIC Electromechanical Technology Co., Ltd. today for complete technical specifications and a quote.
We will provide you with the optimal drive solution to ensure more stable and efficient operation of your equipment.
