Product Overview

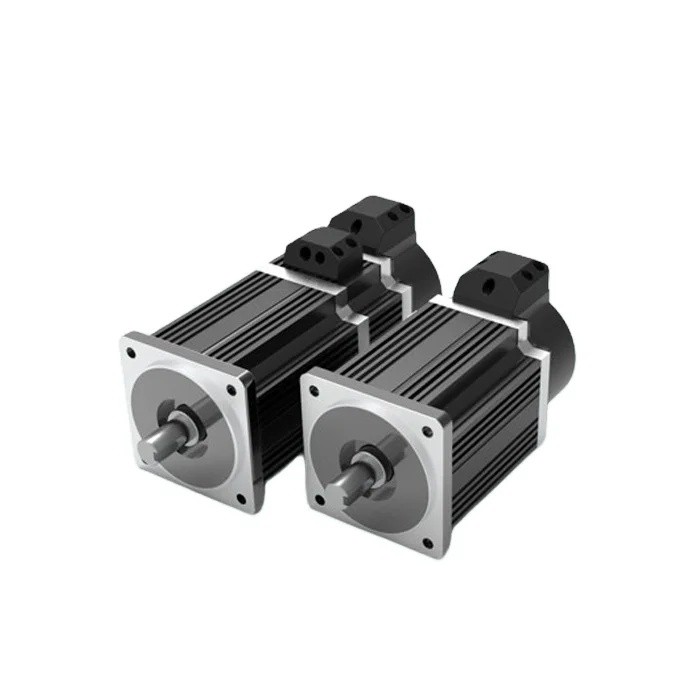

This 750w servo motor is a high-performance drive solution designed specifically for small and medium-sized automation equipment. It offers high precision, stable performance, and energy efficiency. It can be used in CNC machine tools, packaging machinery, textile equipment, and industrial robots. Choosing a reliable servo motor not only improves equipment efficiency but also reduces maintenance costs and the risk of downtime.
Product Parameter Table
Rated power: 750W
Rated voltage: 220V AC (customizable)
Rated speed: 3000 rpm
Peak torque: 2.4 N·m
Encoder: 23-bit absolute encoder (optional 17-bit)
Efficiency: ≥90%
Protection Class: IP65 (Optional)
Why choose our 750w servo motor
Our servo motors utilize a 23-bit high-resolution encoder, achieving a positioning accuracy of ±0.01°, approximately 30% higher than conventional 17-bit encoders. This ensures consistent product quality even in high-speed and repetitive positioning scenarios.
Using imported bearings and an optimized heat dissipation system, the motors boast a mean time between failures (MTBF) exceeding 20,000 hours. This means our products offer extended stable operation and reduced maintenance and replacement costs.
Our servo motors conform to international standard flange interfaces and are customizable in a variety of shaft lengths and voltages, making them easy to integrate with existing equipment and reducing post-purchase modification costs.
Our motors utilize a brushless permanent magnet design, high-performance magnets, and intelligent control algorithms to minimize energy loss, resulting in an overall efficiency exceeding 90%. This saves approximately 10%-15% in energy compared to conventional servo motors, effectively reducing long-term operating costs.

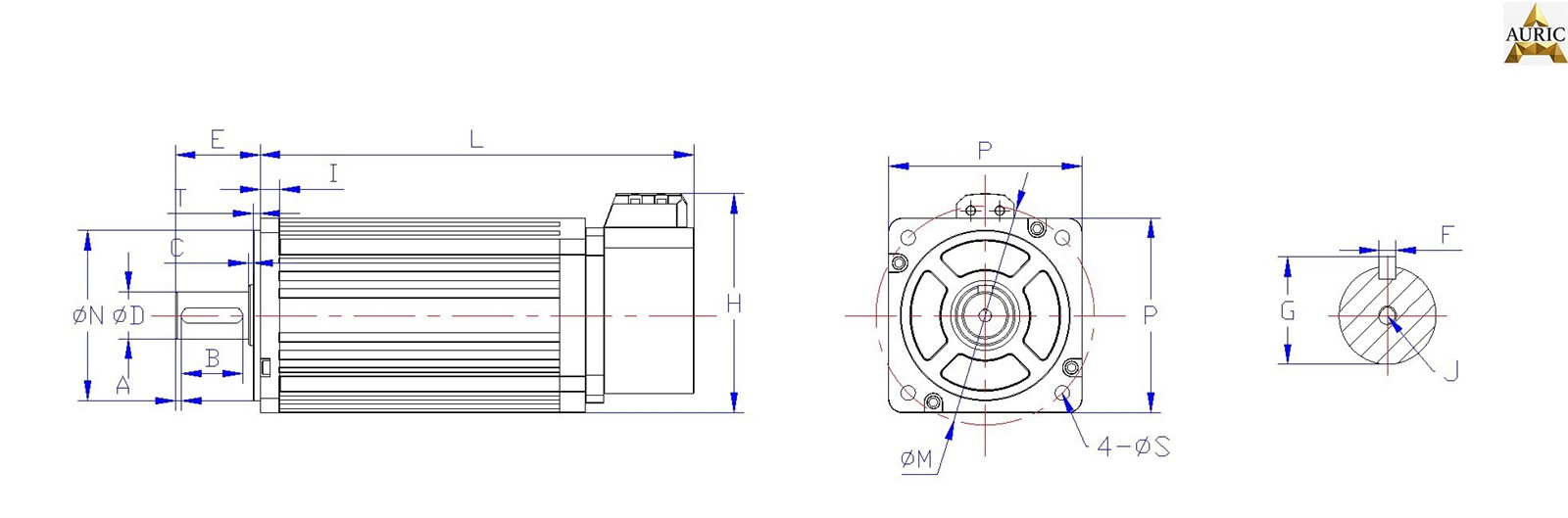

Outline dimension table
| TYPE | INSTALLATION DIMENSIONS(mm) | |||||||||||||||||
| BASE NO. | A | B | C | D | E | F | G | H | I | J | T | M | N | P | S | L | L1 | L2 |
| A60ST-M00630 | 2 | 20 | 2 | 14 | 30 | 5 | 16 | 72 | 8 | - | 3 | 70 | 50 | 60 | 5.5 | 127 | - | 175 |
| A60ST-M01330 | 2 | 20 | 2 | 14 | 30 | 5 | 16 | 72 | 8 | - | 3 | 70 | 50 | 60 | 5.5 | 152 | - | 200 |
| A80ST-M01330 | 2 | 25 | 2 | 19 | 35 | 6 | 21.5 | 90 | 8 | M5 | 3 | 90 | 70 | 80 | 6 | 129 | 169 | 183 |
| A80ST-M02430 | 2 | 25 | 2 | 19 | 35 | 6 | 21.5 | 90 | 8 | M5 | 3 | 90 | 70 | 80 | 6 | 156 | 196 | 211 |
| A80ST-M03520 | 2 | 25 | 2 | 19 | 35 | 6 | 21.5 | 90 | 8 | M5 | 3 | 90 | 70 | 80 | 6 | 184 | 224 | 238 |
| A80ST-M04025 | 2 | 25 | 2 | 19 | 35 | 6 | 21.5 | 90 | 8 | M5 | 3 | 90 | 70 | 80 | 6 | 196 | 236 | 238 |
| A90ST-M02430 | 3 | 25 | 2 | 16 | 35 | 5 | 18 | 93 | 8 | M5 | 3 | 100 | 80 | 86 | 6.5 | 155 | 203 | 212 |
| A90ST-M03520 | 3 | 25 | 2 | 16 | 35 | 5 | 18 | 93 | 8 | M5 | 3 | 100 | 80 | 86 | 6.5 | 177 | 225 | 234 |
| A90ST-M04025 | 3 | 25 | 2 | 16 | 35 | 5 | 18 | 93 | 8 | M5 | 3 | 100 | 80 | 86 | 6.5 | 187 | 235 | 244 |
Precaution: L--without brake L1--with electromagnetic brake L2--with permanent magnet brake
It can be customized according to your requirements, including parameters such as voltage, power, rotational speed, and installation dimensions.
Performance parameter table
| Performance Parameter | |||||||||
| TYPE | A60ST-M00630 | A60ST-M01330 | A80ST-M01330 | A80ST-M02430 | A80ST-M03520 | A80ST-M04025 | A90ST-M02430 | A90ST-M03520 | A90ST-M04025 |
| Rated Output (W) | 200 | 400 | 400 | 750 | 730 | 1000 | 750 | 730 | 1000 |
| Rated Voltage(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated Current(A) | 1.2 | 2.8 | 2 | 3 | 3 | 4 | 3 | 3 | 4 |
| Rated Speed(RPM) | 3000 | 3000 | 3000 | 3000 | 2000 | 2500 | 3000 | 2000 | 2500 |
| Rated Torque(N.m) | 0,637 | 1.27 | 1.27 | 2.39 | 3.5 | 4 | 2.4 | 3.5 | 4 |
| Instantaneous Peak Torque(N.m) | 1.91 | 3.9 | 3.8 | 7.1 | 10.5 | 12 | 7.1 | 10.5 | 12 |
| Max. Motor EMF(V/1000r/min) | 30.9 | 29.6 | 40 | 48 | 71 | 56 | 51 | 67 | 60 |
| Torque Coefficient(N.m/A) | 0.53 | 0.45 | 0.64 | 0.8 | 1.17 | 0.9 | 0.8 | 1.2 | 1 |
| Rotor Inertia (Kg.㎡) | 0.175x10-4 | 0.29 × 10-4 | 1.05x10-4 | 1.82x10-4 | 2.63x10-4 | 2.97x10-4 | 2.45x10-4 | 3.4x10-4 | 3.7x10-4 |
| Line Resistance (Ω) | 6.18 | 2.35 | 4.44 | 2.88 | 3.65 | 1.83 | 3.2 | 4.06 | 2.69 |
| Line Inductance(mH) | 29.3 | 14.5 | 7.93 | 6.4 | 8.8 | 4.72 | 7 | 9.7 | 6.21 |
| Electrical Time Constant(Ms) | 4.74 | 6.17 | 1.66 | 2.22 | 2.4 | 2.58 | 2.2 | 2.39 | 2.3 |
| Insulation Class | F | F | F | F | F | F | F | F | F |
| Ingress Protection rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Ambient Temperature(°C) | -20--+40 | -20--+40 | -20--+40 | -20--+40 | -20--+40 | -20--+40 | -20--+40 | -20--+40 | -20--+40 |
| Ambient Humidity | 20--80% | 20--80% | 20--80% | 20--80% | 20--80% | 20--80% | 20--80% | 20--80% | 20--80% |
| Weight(KG) | 1.16 | 1.6 | 1.78 | 2.9 | 3.9 | 4.1 | 3.1 | 3.9 | 4.2 |
It can be customized according to your requirements, including parameters such as voltage, power, rotational speed, and installation dimensions.
Product Advantages
High torque density
At 750W power, peak torque reaches 2.4 N·m, making it suitable for rapid acceleration and deceleration applications such as CNC engraving and packaging sorting.
01
Low operating noise
Less than 60dB, making it ideal for automated workshops with strict environmental requirements.
02
Precise control
Speed fluctuation is ≤ ±0.1%, meeting high-precision machining requirements.
03
High reliability
Supporting IP65 protection, it operates stably in humid and dusty environments.
04
Flexible customization
Our products support OEM/ODM services, including various configurations such as voltage, encoder, flange, and cable.
05
Servo motor application scenarios
CNC Machine Tools: 750W power is suitable for small and medium-sized CNC equipment, providing fast response and precise processing.
Packaging Machinery: High-speed, continuous operation reduces downtime.
Textile Equipment: Maintains stable torque output even during long-term operation.
Robot Joint Drives: Fast response and high-precision positioning enhance robot flexibility.
UAVs/Drones: 750W servo motors provide strong power output and precise control for medium and large UAVs, making them suitable for long-duration flights and high-payload missions.
Who is Zibo AURIC?
Zibo AURIC Electromechanical Technology Co., Ltd. is a servo motor manufacturer with many years of production experience.
Our factory boasts a strong presence, boasting its own modern production facility covering 20000 square meters. Equipped with advanced equipment such as automatic winding machines, dynamic balancing equipment, and precision testing platforms, our annual servo motor production capacity exceeds 10 million units, ensuring on-time delivery of large orders.
We rigorously control product quality: Every motor undergoes 100% inspection before shipment, including key tests such as withstand voltage, insulation, noise, and temperature rise.
AURIC has many years of export experience and has provided solutions to customers in over 30 countries and regions.
We are fully certified, including ISO9001, CE, and RoHS, meeting various market access requirements.
Our product delivery is guaranteed. Generally, standard specifications are available in sufficient stock, allowing for quick shipment within 7-10 days. Customized products can be delivered within 15-20 days, depending on the order.
AURIC's customer service is comprehensive and reliable, offering installation guidance, selection advice, and remote technical support for worry-free after-sales service.
