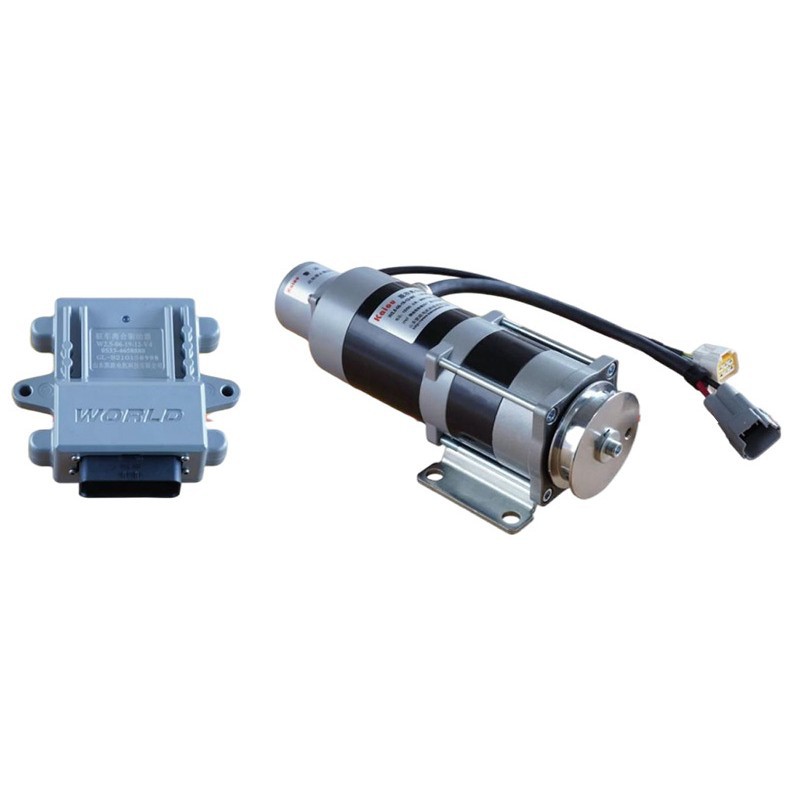

Agriculture Electric Motor

Stable Power Output

This AURIC agriculture electric motor features an optimized electromagnetic structure design, ensuring stable power output even under load and minimizing power fluctuations to guarantee equipment operating efficiency.

Adaptability to Various Complex Agricultural Environments

The motor housing and sealing structure have been optimized to effectively reduce the impact of dust and moisture on the internal structure, extending product lifespan.

High Torque Drive Capability

Many agricultural machines require high torque during startup, such as crushing equipment, conveying equipment, and grain processing equipment. AURIC's motor provides stable starting torque during the startup phase, ensuring smooth start-up and continuous operation.

Low Maintenance Costs

Agricultural equipment is generally located in relatively remote areas, so the maintenance frequency of agriculture electric motors should be minimized. The product structure must be reliable and durable. AURIC's motor features a reasonable bearing configuration and heat dissipation structure design, enabling long-term stable operation and reducing downtime for maintenance.

Irrigation Systems: Can be used to drive water pumps, providing stable power and ensuring continuous operation of irrigation systems.

Grain Processing Equipment: Provides continuous and stable driving force in grain conveying, screening, and processing equipment.

Feed Production Equipment: Drives mixing and crushing equipment, ensuring processing efficiency.

Agricultural Automation Equipment: Serves as a core power unit in automatic feeding systems, agricultural robots, and other equipment.

Precision Stator and Rotor Machining

This agriculture electric motor utilizes high-precision machining equipment to ensure uniform air gap between the stator and rotor, thereby improving motor efficiency and reducing vibration.

High-Quality Winding Process

Automated winding equipment is used to produce the stator windings, improving coil consistency and reducing electromagnetic noise during motor operation.

Dynamic Balancing Test

Each motor from AURIC undergoes rotor dynamic balancing testing after assembly to reduce operational vibration and improve mechanical stability.

Full Performance Testing

Pre-shipment operational testing is conducted to check the product's speed stability, current performance, and temperature rise, ensuring the product meets stable operation standards.

In addition to providing agriculture electric motor products, AURIC also offers application support services

Equipment Matching Recommendations

We will recommend suitable motor models based on your equipment's power requirements and operating conditions.

OEM and ODM Services

We can customize to your needs, including installation dimensions, output shaft structure, motor power range, and meet the design requirements of different agricultural equipment.

Stable Supply Capacity

AURIC supports bulk order production, ensuring a continuous supply to agricultural equipment manufacturers.

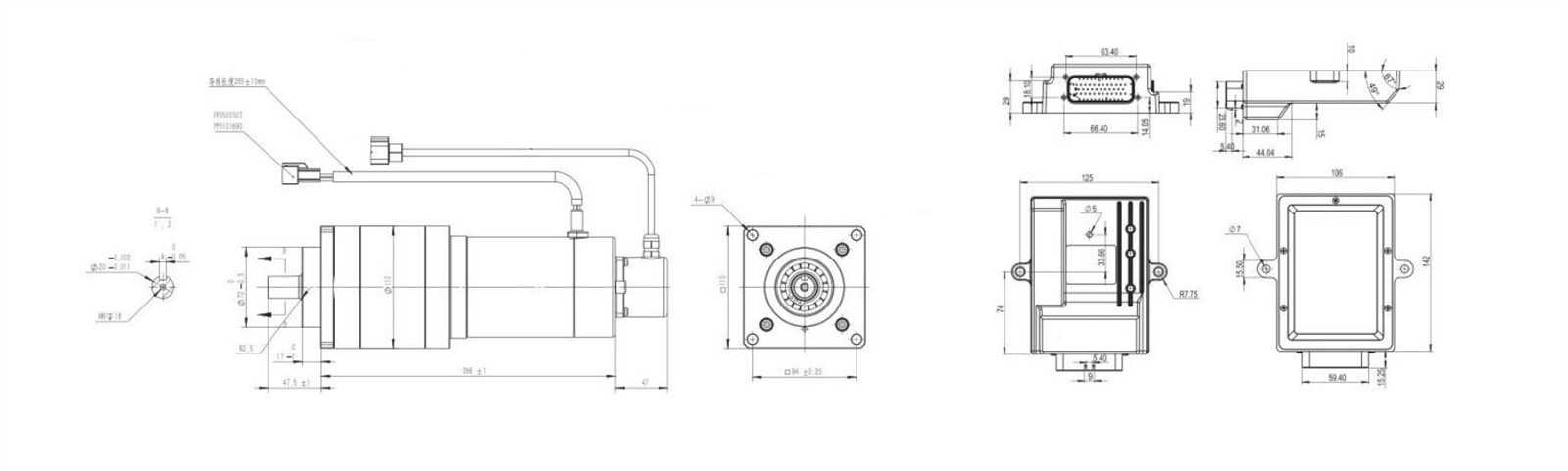

Motor Parameters:

Operating temperature:​ –40 °C to 85 °C

Protection class:​ IP67

Durability:​ 20,000 hours of trouble-free operation

Vibration resistance:​

• Frequency: 5–50 Hz
• Acceleration: 9.8 m/s²
• Amplitude: 2–4 mm
• Test duration: 30 minutes in each of the X, Y, and Z directions

Operating voltage:​ 12 ± 3 V
Current limit:​ 40 A

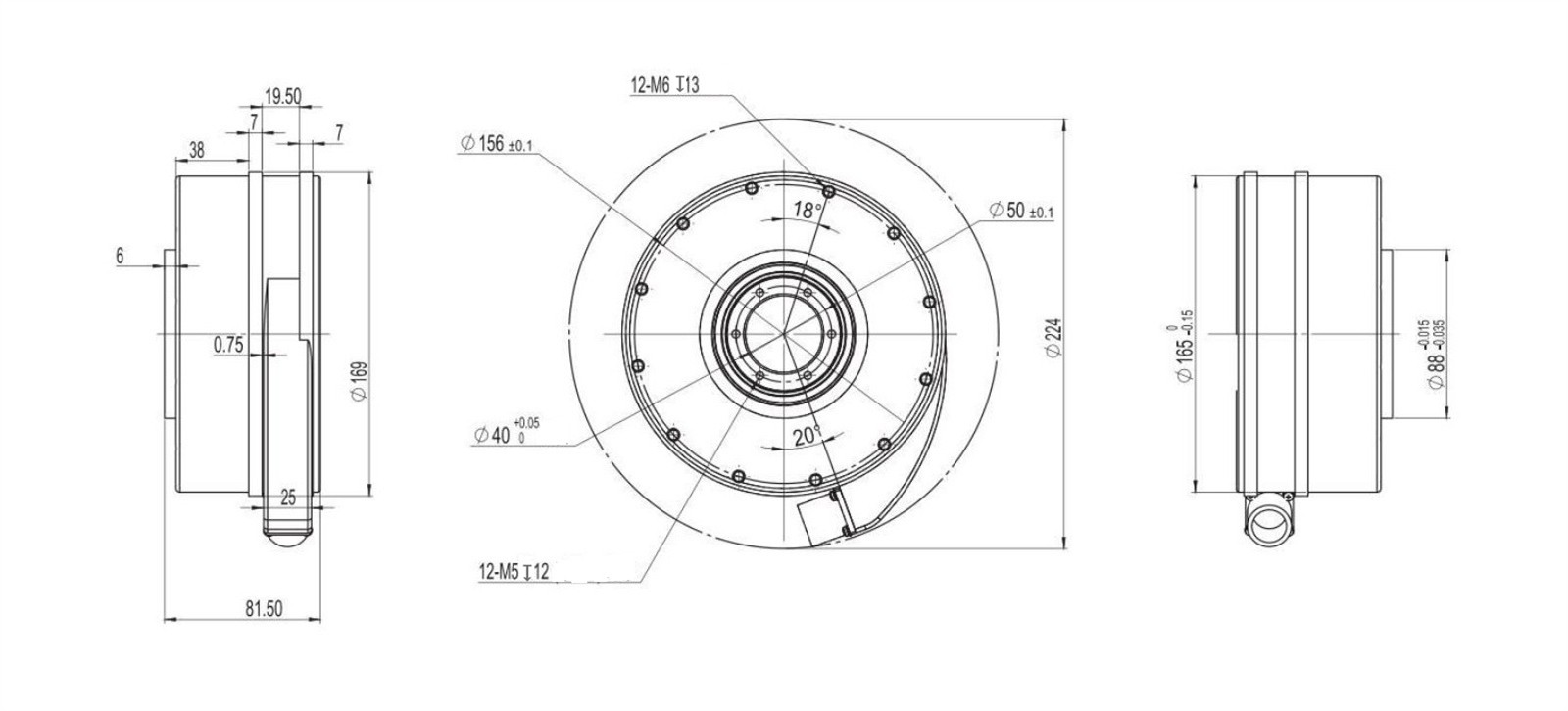

Steering wheel motor, direct-drive steering wheel motor, intelligent agricultural machinery steering motor

​

Motor parameters:

• Voltage:​ 12 V DC
• Rated torque:​ 5 N·m
• Maximum speed:​ 100 rpm
• Protection class:​ IP65
• Insulation class:​ F

This motor is used for driving the steering wheel in unmanned agricultural machinery. It features a high torque-to-inertia ratio, with small mechanical time constant and electrical time constant, low rotor inertia, fast dynamic response, and high position control accuracy. The hollow shaft interface allows for quick connection and installation to the agricultural machinery's steering wheel.

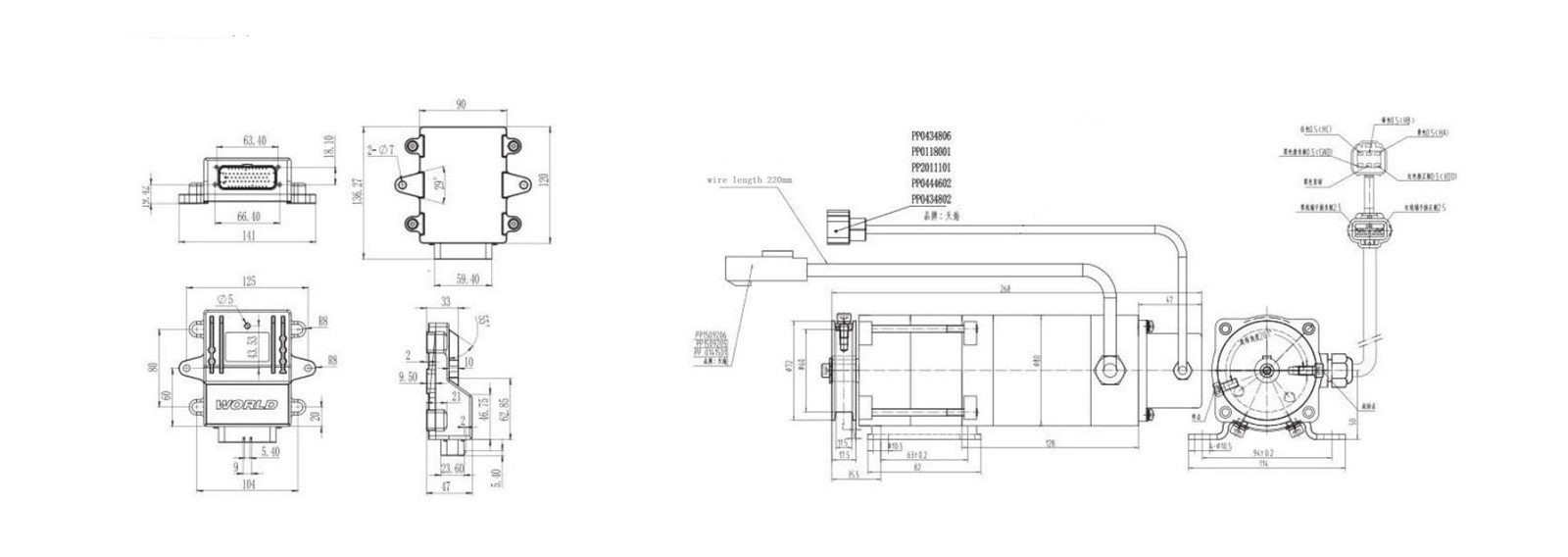

Electric Motor Parameters:​

• Voltage:​ 12 V DC
• Power:​ 260 W
• Speed:​ 14 ± 3 r/min
• No-load current:​ ≤ 15 A
• Protection class:​ IP66
• Insulation class:​ B (130 °C)
• Output torque:​

 M5 tightening torque: 4.5–5.5 N·m

 M6 tightening torque: 9–12 N·m

• Duty cycle:​ Short-time operation 2 min (test condition: 2 min running / 6 min stop in a cycle)

General 360 Module Parameters:​

• Operating temperature:​ –40 °C to 85 °C
• Protection class:​ IP67
• Operating voltage:​ 12 V / 24 V
• Protective functions:​ Overvoltage, undervoltage, overload, stall, limit position, anti-runaway protection.
• Function:​ Utilizes the built-in encoder of the grain discharge tube rotation motor to achieve precise positioning and control of the high-position discharge tube's rotation angle.

Four-button Handle Parameters:​

• Waterproof rating:​ IP67
• Cable length:​ ≥ 1500 mm
• Function:​ Direct-type push buttons; pressing a button outputs a low-level signal.

If you are looking for a reliable supplier of agricultural electric motors for agricultural machinery or automation equipment, we can provide you with stable and reliable motor solutions.
