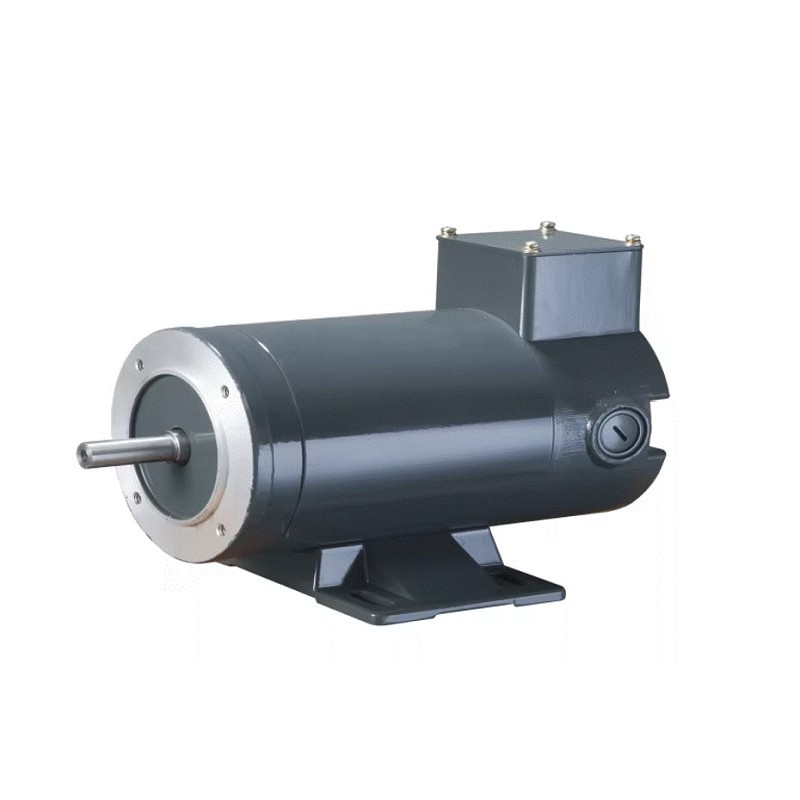

Permanent Magnet Dc Motor 180v

AURIC's 180V permanent magnet DC motor provides stable torque output and excellent energy efficiency for industrial applications.
This motor utilizes a permanent magnet excitation system, eliminating field coil losses, improving response speed, and achieving over 85% efficiency.
Its compact, durable design and stable speed make it ideal for automated production lines, packaging systems, and mechanical drives requiring stringent precision and durability.
Unlike traditional wound-magnet DC motors, this motor offers faster dynamic response, lower heat generation, and reduced maintenance costs.

Rated voltage: 180V DC

Output power range: 100W – 1.5kW

Rated speed: 1500 – 3000 RPM

Efficiency: ≥85%

Insulation class: Class F (155°C)

Noise level: ≤55 dB

Protection rating: IP54 / IP65 (optional)

Cooling method: Natural cooling / Air cooling

1. High-Energy-Density Permanent Magnet System：
Utilizing high-performance NdFeB rare-earth permanent magnets, the magnetic flux density is increased by approximately 25%, achieving higher output torque at the same current. This design enhances low-speed performance and ensures quick and stable startup.

2. Optimized Electromagnetic Design and High-Conductivity Copper Wire Winding：
The winding utilizes H-class insulated pure copper wire, which is uniformly wound using a precision winding machine, reducing resistance and temperature rise. The 0.35mm high-quality silicon steel lamination structure effectively reduces iron loss, ensuring a temperature rise below 75K during long-term operation.

3. Dynamically Balanced Rotor and Precision Bearing System：
The rotor's dynamic balance deviation is controlled within 0.005mm. Combined with NSK/C&U precision bearings, this system ensures low noise and vibration, maintaining stable output even under high loads.

4. Guaranteed Long Life and Consistency：
Each motor undergoes 100% load and insulation testing. The mean time between failures (MTBF) exceeds 20,000 hours.

Automated production lines and conveyor systems

Textile machinery and packaging equipment

Lathes, grinders, and CNC machinery

Medical devices and pumps

Laboratory instruments and precision control systems

The 180V voltage rating makes this series of motors ideal for industrial applications requiring high-voltage, low-current drive, reducing line losses and improving system efficiency.

Relying on technical cooperation with Shandong University of Technology and Shandong Kehui Electric Automation, AURIC continues to improve in magnetic circuit design and thermal management to ensure that motor performance remains industry-leading.

1.A one-stop motor supply platform: From DC permanent magnets to servo systems, we offer a full range of products.

2.Strong R&D capabilities: Jointly developed with Shandong University of Technology to develop new high-efficiency motors.

3.OEM/ODM customization capabilities: Customizable based on torque, voltage, size, and interface requirements.

4.Sustainable manufacturing philosophy: Over 65% of materials are recyclable, reducing production energy consumption by 12% (2022–2024).

5.Reliable after-sales service: Comprehensive technical documentation and 24/7 online technical support are provided.

When you choose Zibo AURIC Electromechanical Technology Co., Ltd., you're not just purchasing a motor; you're partnering with a manufacturing partner who believes in innovation, quality, and responsibility.

If you're looking for a 180V permanent magnet DC motor that combines high performance, long life, and customization, please contact me today for detailed specifications and a volume quote.
I'll help you build a more efficient and reliable drive system to keep your equipment running consistently.
