Product Overview

As a manufacturer with a long history of expertise in motors and control systems, Zibo Auric Electromechanical Technology Co., Ltd. focused on control precision, system stability, and engineering adaptability in the design of this intelligent brushless motor controller.

The controller integrates a digital control unit, enabling real-time analysis of the three-phase current, back electromotive force, and rotor position of the BLDC motor, thereby achieving more precise commutation control and smoother power output.

Compared to ordinary brushless controllers, it not only "can rotate," but also remains controllable, predictable, and usable for extended periods under high speed, high load, and frequent start-stop conditions.

Product Advantages

1. Control Performance and Reliability

Adopts intelligent FOC/six-step commutation control strategy (optional), maintaining stable output in both low and high speed ranges.

Speed control accuracy reaches ±1%, significantly superior to conventional analog controllers.

Fast current closed-loop response effectively suppresses speed fluctuations caused by sudden load changes.

For buyers, this translates to more stable equipment operation and lower after-sales risk.

2. Power Output and Efficiency

Supports high-efficiency drive, with system efficiency exceeding 95%.

Linear torque output, no jitter at low speeds, and no attenuation at high speeds.

Reduces ineffective heat generation, facilitating long-term continuous operation.

3. Intelligent Protection and Safety

Built-in overcurrent, overvoltage, undervoltage, overtemperature, stall, and phase loss protection.

Automatic current limiting or shutdown in abnormal conditions, with support for fault code output.

Effectively protects the motor, controller, and the entire system.

For wholesale customers, this is a key factor in reducing maintenance rates and warranty costs.

Product Uses

Application areas	Practical effect	Advantages
Industrial automation equipment	Precise control of speed and start/stop	Improve production line cycle time consistency
Fan/Pump System	Long-term stable operation	Reduce energy consumption and noise
Robots and actuators	Smooth motion control	Improve motion accuracy
Electric vehicles and mobile devices	Dynamic load adjustment	Enhance climbing and acceleration capabilities
Special machinery and equipment	High-speed or heavy-load conditions	Extend system lifespan

Performance parameter table

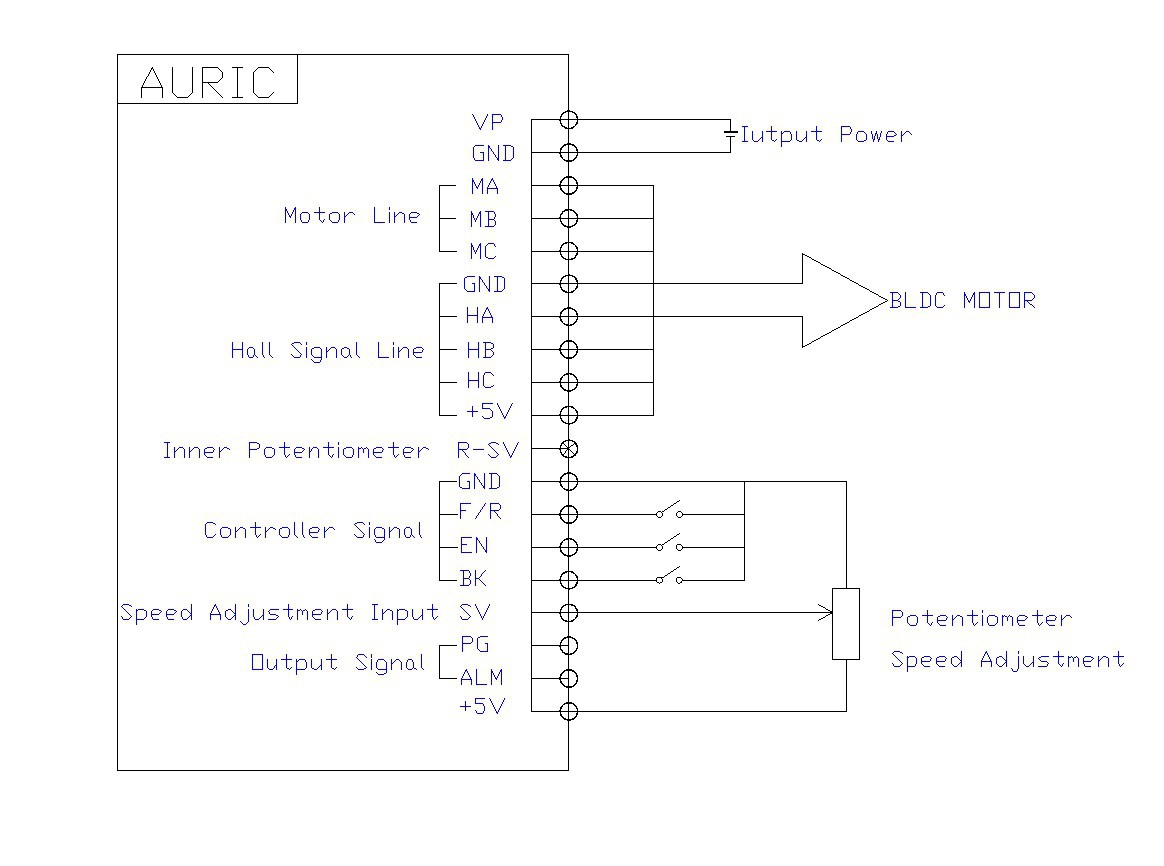

product-1164-866

BLDC MOTOR CONTROLLER
Input Voltage	24-48VDC	85-265VAC, 50/60Hz
Continuous Current	3.5-16 A	2.5-12A
Max. Output Power	80-400 W	400-1500W
Peak Current	25A	20A
Working Temperature	0 ~ +45°C
Storage Temperature	-20 ~ +85°C
Working & Storage	<85% No condensation
Certification)	CE, RoHS

Manufacturing Process

The control board adopts an industrial-grade PCB design, with widened and thickened key power circuits.

Mature and reliable solutions are selected for MOSFETs and driver chips to ensure stability under high current conditions.

Critical circuit areas are treated with tri-proof coating to improve resistance to moisture and dust.

Each controller undergoes full-load power-on testing and functional verification before leaving the factory, rather than just continuity testing.

Compatibility and System Integration Capabilities

Compatible with various BLDC Permanent Magnet Motors

Supports Hall effect and Hall-less brushless motors (depending on model configuration)

Supports PWM, 0–5V, and communication control (customizable)

Voltage, current, and power ranges can be flexibly matched according to project requirements

Supports OEM/ODM for easy integration by OEMs

Application Case Study

A customer specializing in automated conveyor equipment replaced their existing general-purpose brushless controller with an AURIC intelligent brushless motor controller. As a result, the equipment startup failure rate decreased by approximately 40%, continuous operating time was significantly extended, and customer complaints and on-site maintenance frequency decreased markedly.

FAQ

I. What is the difference between an Intelligent Brushless Motor Controller and a regular BLDC controller?

The intelligent controller has real-time current and speed analysis capabilities, maintaining stable output even under load changes. Regular controllers are mostly open-loop or weakly closed-loop, resulting in lower control accuracy and reliability.

II. Does it support brushless motors of different power ranges?

Yes. The controller covers a range from low to high power, with specific parameters matched to the motor's rated voltage and current.

III. Can it be used for long-term industrial operation?

Yes. This controller was designed with continuous operation and heat dissipation in mind, making it suitable for long-term operation of industrial equipment.

IV. Does it support customized interfaces or control logic?

Yes. As a manufacturer of motors and control systems, AURIC provides OEM and ODM customization services.

V. Does it provide technical support?

Yes. This includes selection advice, parameter matching, application guidance, and after-sales technical support.

Get an Intelligent Brushless Motor Controller Solution

If you're looking for a truly stable, mass-producible, and long-term supply-ready Intelligent Brushless Motor Controller, Zibo AURIC Electromechanical Technology Co., Ltd. can provide you with a complete solution from controller to motor.

Feel free to contact us for technical parameters, samples, and customized solutions.
