Product Advantages
Stable Transmission Accuracy
Our high-precision gearboxes achieve:
Standard backlash: ≤8 arcmin
Precision models: ≤5 arcmin
Stable Long-Term Operation
Our high-precision reducers achieve:
Transmission efficiency: 94%–97%
Rated life: Over 20,000 hours
Noise control: ≤65 dB
Sufficient Torque Capacity
High torque density structure
Optimized planetary gear force distribution
Multi-tooth simultaneous meshing design
Application Scenarios
Industrial Robots: Ensuring smoother joint movements improves positioning accuracy.
CNC Machine Tools: In precision machining equipment, the precision of high-precision gearboxes directly impacts machining quality.
Automated Production Lines: Stable transmission systems reduce downtime and increase production efficiency.
Medical Equipment: Low noise and high stability are particularly important for medical devices.
Semiconductor Equipment: Precision motion control systems typically rely on high-precision gear transmissions.
Product Manufacturing Process
Precision Gear Machining
Gear Accuracy Grade: DIN 6–7
Tooth Surface Roughness: ≤0.8 μm
This machining precision reduces gear meshing impact.
Gear Heat Treatment
Key gear components undergo surface hardening treatment.
Tooth Surface Hardness: HRC58–62
Significantly Improved Wear Resistance
The reducer housing is made of high-strength alloy material and precision machined.
High Structural Strength
Strong Deformation Resistance
More Stable Operation
Full-Process Performance Testing
Each reducer undergoes performance testing before leaving the factory.
No-load Operation Test
Noise Detection
Temperature Rise Test
Sealing Performance Test
Why Choose Us
AURIC is a professional manufacturer of motors and transmission equipment. We can provide complete high-precision gearbox solutions, including customized reducer solutions, professional selection advice, OEM/ODM production support, and fast delivery capabilities.
Our engineering team has many years of experience in motor and transmission system design, enabling us to help customers optimize equipment structure and improve overall performance.

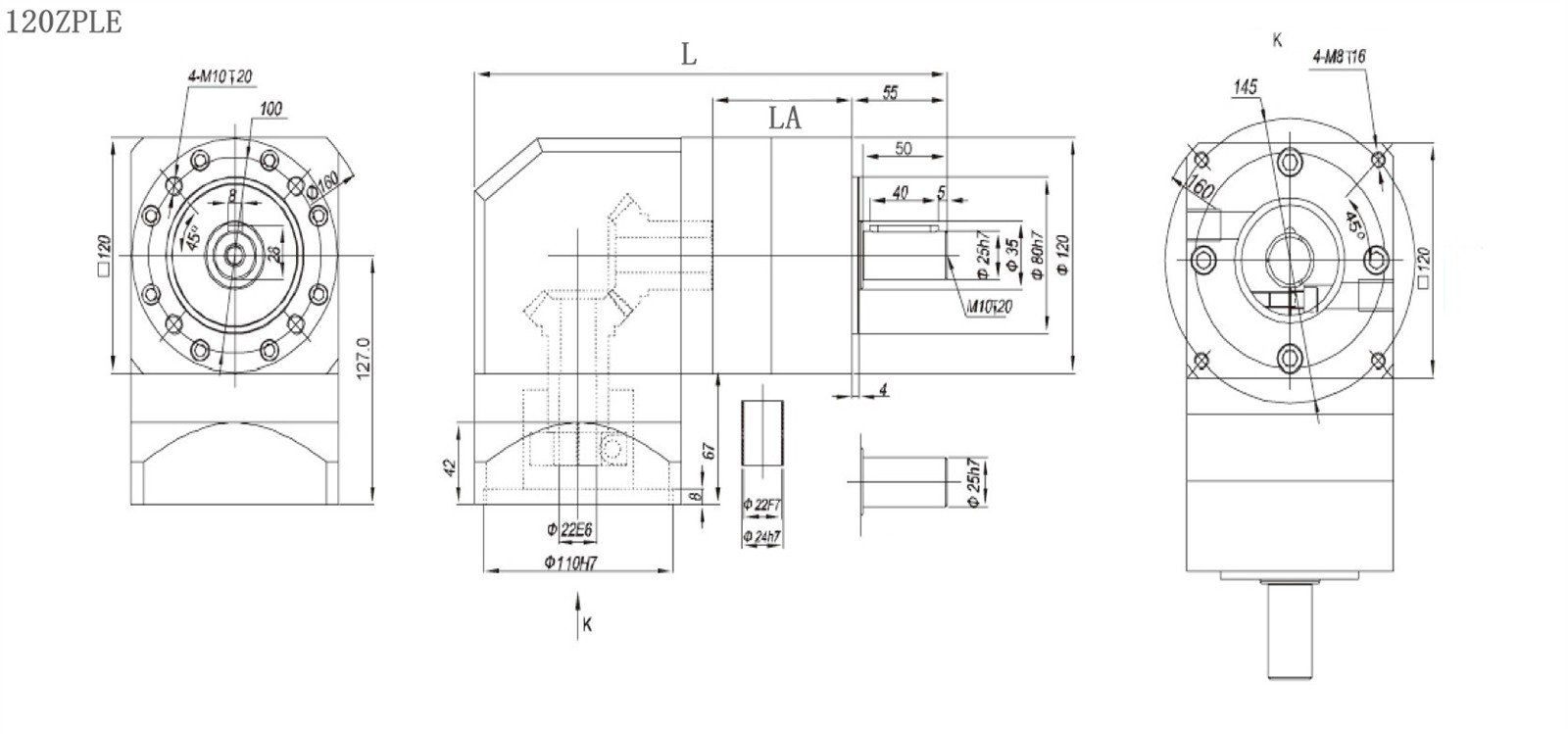

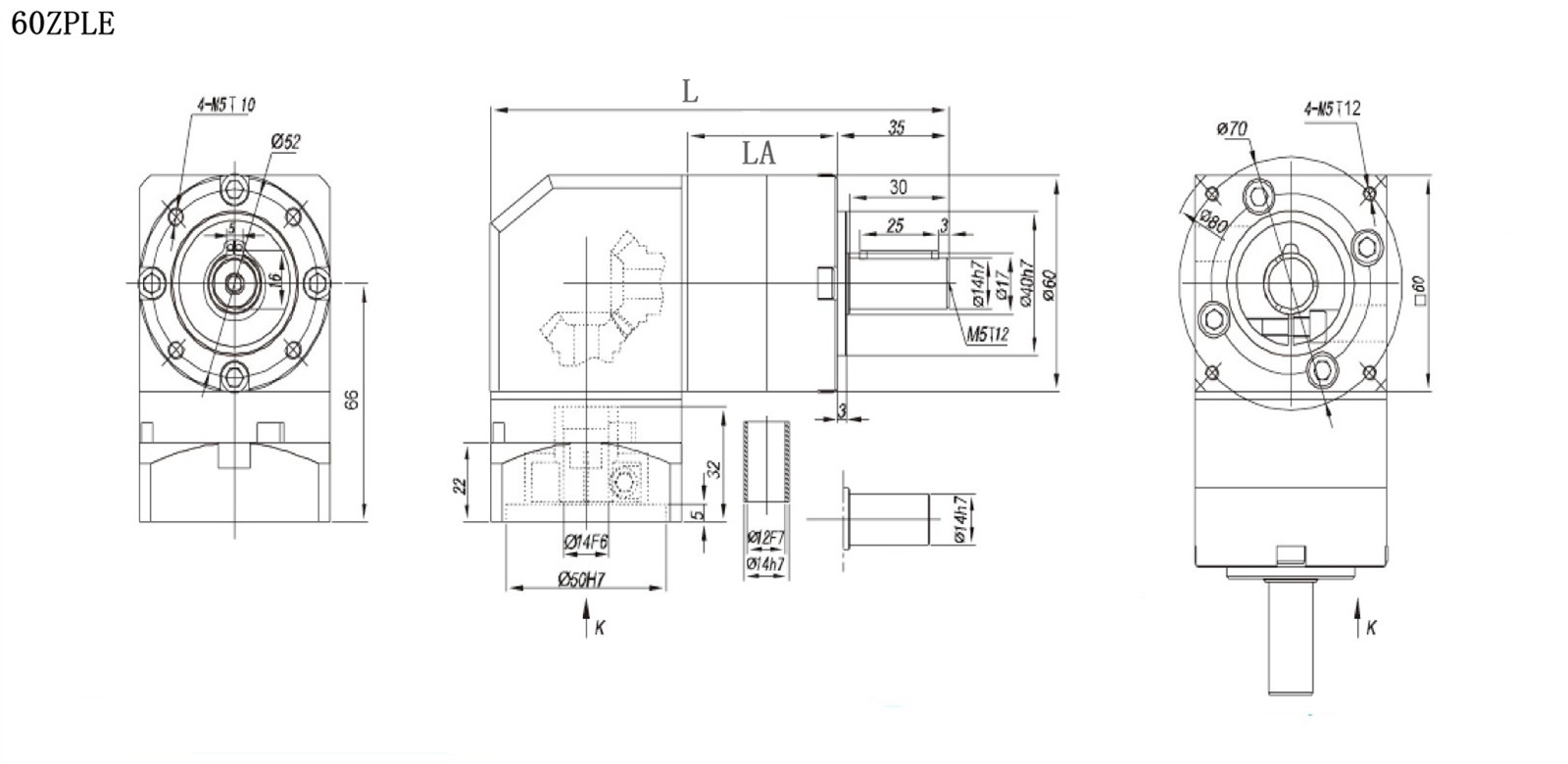

ZPLE
| ZPLE High Precision Planetary Gearbox Specifications | |||||||
| Item | Unit | 60ZPLE05 | 60ZPLE25 | 90ZPLE05 | 90PLE25 | 120PLE05 | 120PLE25 |
| Rated Input Speed | rpm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Max Input Speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Precision Backlash | P1 arcmin | ≤10 | ≤12 | ≤10 | ≤12 | ≤10 | ≤12 |
| Precision Backlash | P2 arcmin | ≤12 | ≤14 | ≤12 | ≤14 | ≤12 | ≤14 |
| Noise Level | dB(A) | ≤63 | ≤63 | ≤65 | ≤65 | ≤68 | ≤68 |
| Max Radial Load | N | 480 | 480 | 900 | 900 | 1850 | 1850 |
| Max Axial Load | N | 600 | 600 | 1200 | 1200 | 2800 | 2800 |
| Ratio | 1:5 | 1:25 | 1:5 | 1:25 | 1:5 | 1:25 | |
| Efficiency | % | ≥95 | ≥92 | ≥95 | ≥92 | ≥95 | ≥92 |
| Weight | kg | 2 | 2.7 | 6.5 | 7.7 | 10.5 | 13 |
| Length (L) | mm | 143.5 | 160 | 191 | 215 | 273.5 | 305 |
| Length (LA) | mm | 46 | 62 | 55 | 78.5 | 80 | 112 |
| Operating Ambient Temperature | ℃ | -15℃ ~ +40℃ | |||||
| Service Life | h | ≥20000 | |||||
| Lubrication | Synthetic grease, lifetime maintenance-free | ||||||
| NOTE: The series of reducers can be matched with various types of motors, including AC, DC, stepper and servo motors, and can be customized according to user requirements. | |||||||

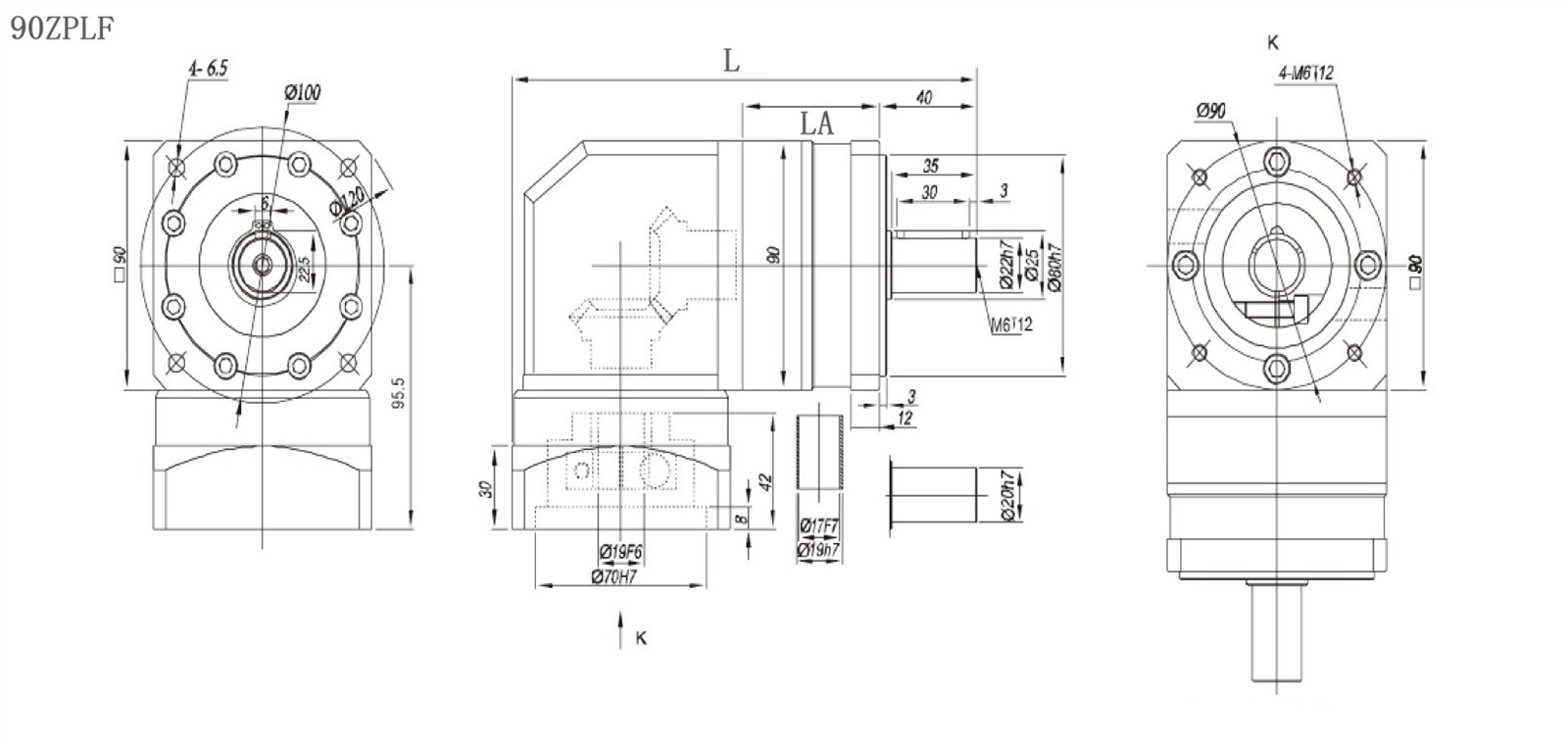

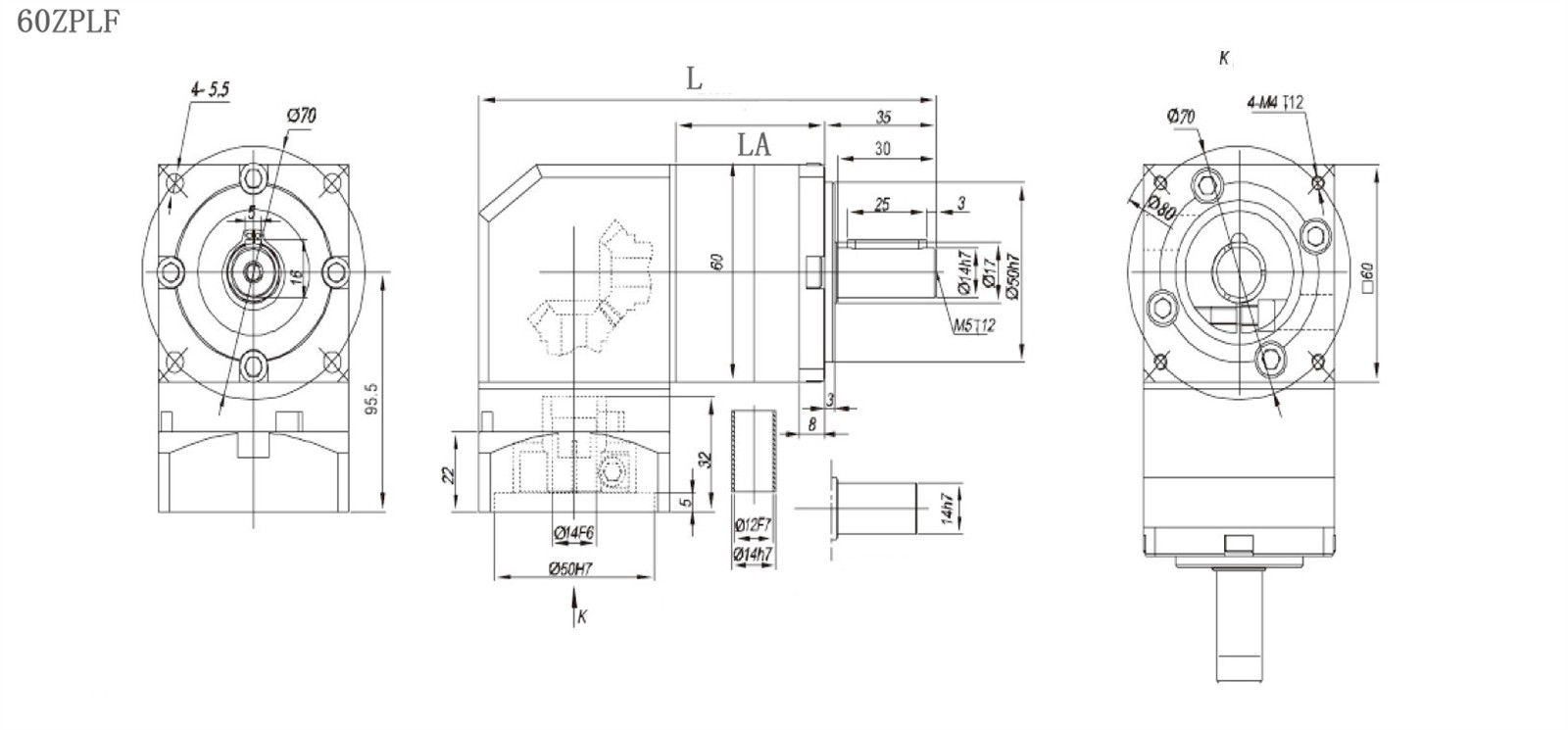

ZPLF
| ZPLF High Precision Planetary Gearbox Specifications | |||||||
| Item | Unit | 60ZPLF05 | 60ZPLF25 | 90ZPLF05 | 90PLF25 | 115PLF05 | 115PLF25 |
| Rated Input Speed | rpm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Max Input Speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Precision Backlash | P1 arcmin | ≤10 | ≤12 | ≤10 | ≤12 | ≤10 | ≤12 |
| Precision Backlash | P2 arcmin | ≤12 | ≤14 | ≤12 | ≤14 | ≤12 | ≤14 |
| Noise Level | dB(A) | ≤63 | ≤63 | ≤65 | ≤65 | ≤68 | ≤68 |
| Max Radial Load | N | 480 | 480 | 900 | 900 | 1850 | 1850 |
| Max Axial Load | N | 600 | 600 | 1200 | 1200 | 2800 | 2800 |
| Ratio | 1:5 | 1:25 | 1:5 | 1:25 | 1:5 | 1:25 | |
| Efficiency | % | ≥95 | ≥92 | ≥95 | ≥92 | ≥95 | ≥92 |
| Weight | kg | 2 | 2.7 | 6.5 | 7.7 | 10.5 | 13 |
| Length (L) | mm | 191 | 215 | 191 | 215 | 273.5 | 305 |
| Length (LA) | mm | 55 | 78.5 | 55 | 78.5 | 80.5 | 112 |
| Operating Ambient Temperature | ℃ | -15℃ ~ +40℃ | |||||
| Service Life | h | ≥20000 | |||||
| Lubrication | Synthetic grease, lifetime maintenance-free | ||||||
| NOTE: The series of reducers can be matched with various types of motors, including AC, DC, stepper and servo motors, and can be customized according to user requirements. | |||||||
Logistics and Packaging
Shockproof foam securing
Moisture-proof sealed packaging
Reinforced export wooden crates
Depending on order size, we can provide sea freight, air freight, and international express delivery to ensure safe and timely delivery to customers.
FAQ
If you are looking for a reliable high-precision gearbox supplier, we can provide stable and efficient drive solutions for your equipment.
Please contact us for the latest quote.
