Product Design

1.High-Efficiency Magnetic Circuit Design

By optimizing the magnetic flux path and armature structure, high starting torque is maintained at 24V.

It also maintains reliable power response under heavy-load starting or low-speed operation conditions.

2.Multi-Stage Gear Transmission System

High torque is not achieved through a single-stage high reduction ratio, but through the rational distribution of the transmission ratio, reducing stress concentration on the tooth surfaces of a single stage, lowering operating noise, and improving transmission smoothness. This structure is more advantageous under continuous load conditions.

3.Reinforced Output Shaft Structure

Under high torque conditions, the output bearing is subjected to a large load.

In our structural design, we focus on strengthening bearing support and stress distribution to reduce the risk of misalignment and wear during long-term use.

Product Advantages

High Starting Torque Capacity

Maintains stable output under heavy-load starting conditions, reducing the risk of equipment start-up failure.

Safe Low-Voltage Operation

24V voltage is suitable for battery-powered applications and environments with high safety requirements.

Stable and Continuous Output

Optimized structural design supports long-term operation at medium and low speeds, reducing the risk of overheating.

Compact Structure

Achieves high torque output within a limited space, facilitating integration into mobile devices and automation systems.

Multiple Specifications Available

Supports different reduction ratios, shaft diameters, and mounting methods to meet diverse project requirements.

Our Services

Pre-sales Technical Consultation

Based on your application scenario, we can provide parameter matching suggestions and structural selection guidance.

Customization Support

AURIC's 24V DC gear motor high torque supports structural customization such as shaft diameter, mounting flange, and reduction ratio to adapt to different equipment interfaces.

Small Batch Trial Order Support

We support sample testing and small-batch cooperation to facilitate customer project verification.

Stable Delivery Capability

We maintain a stable production schedule for standard models to ensure controllable delivery times.

Technical Issue Response

We can provide technical analysis support to assist in troubleshooting operational problems during use.

Performance parameter table

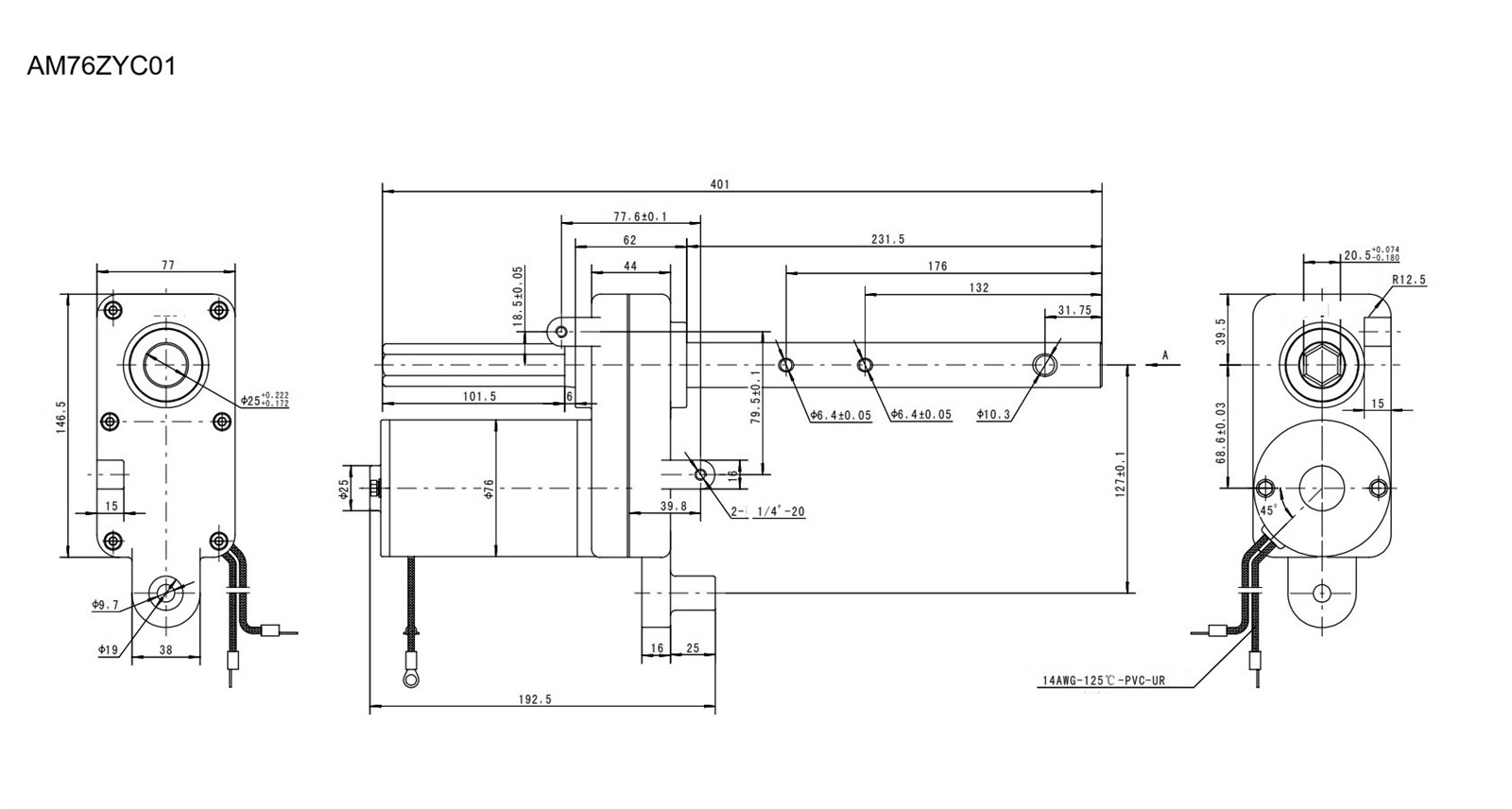

76zyc01

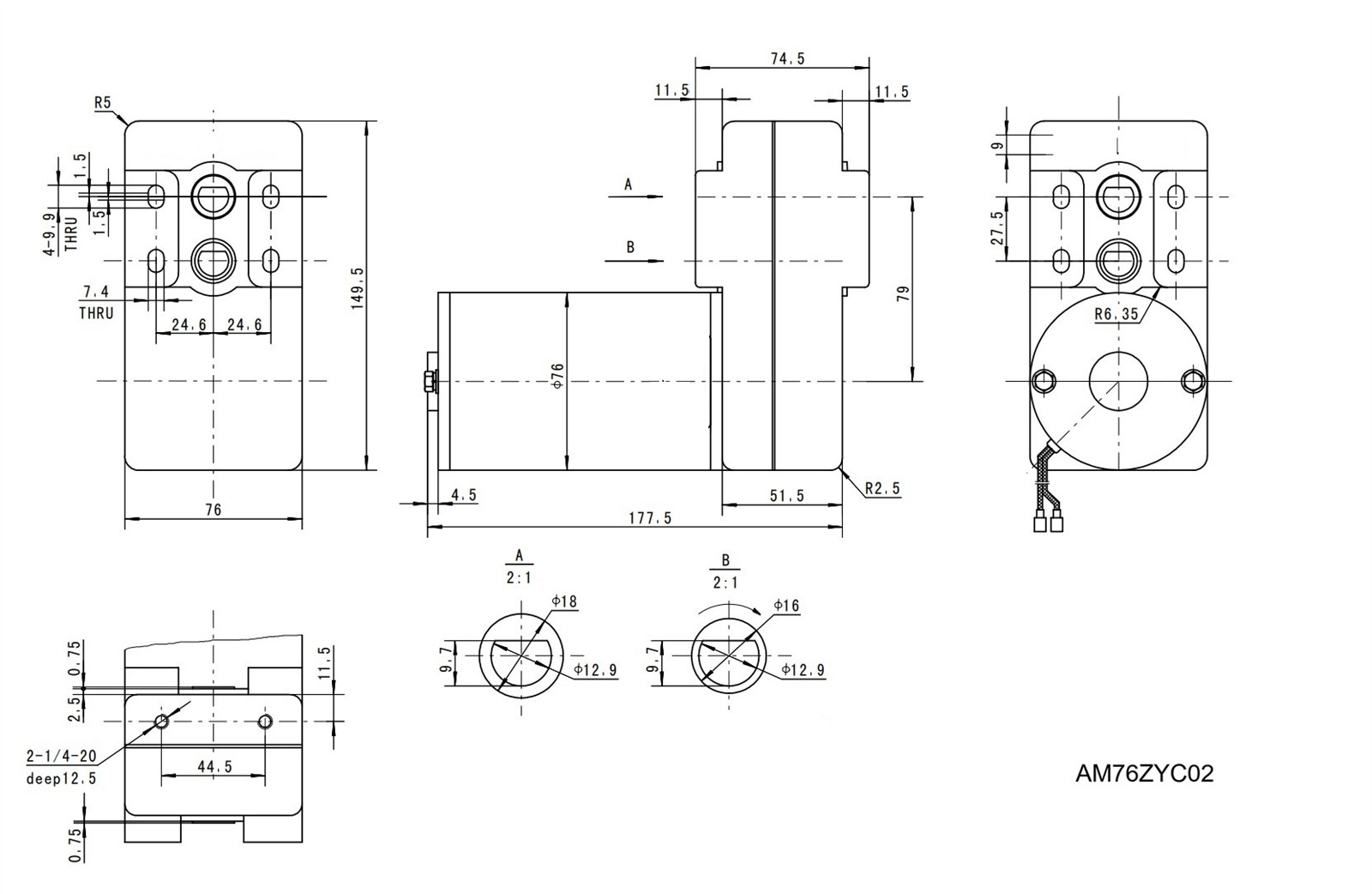

76ZYC02

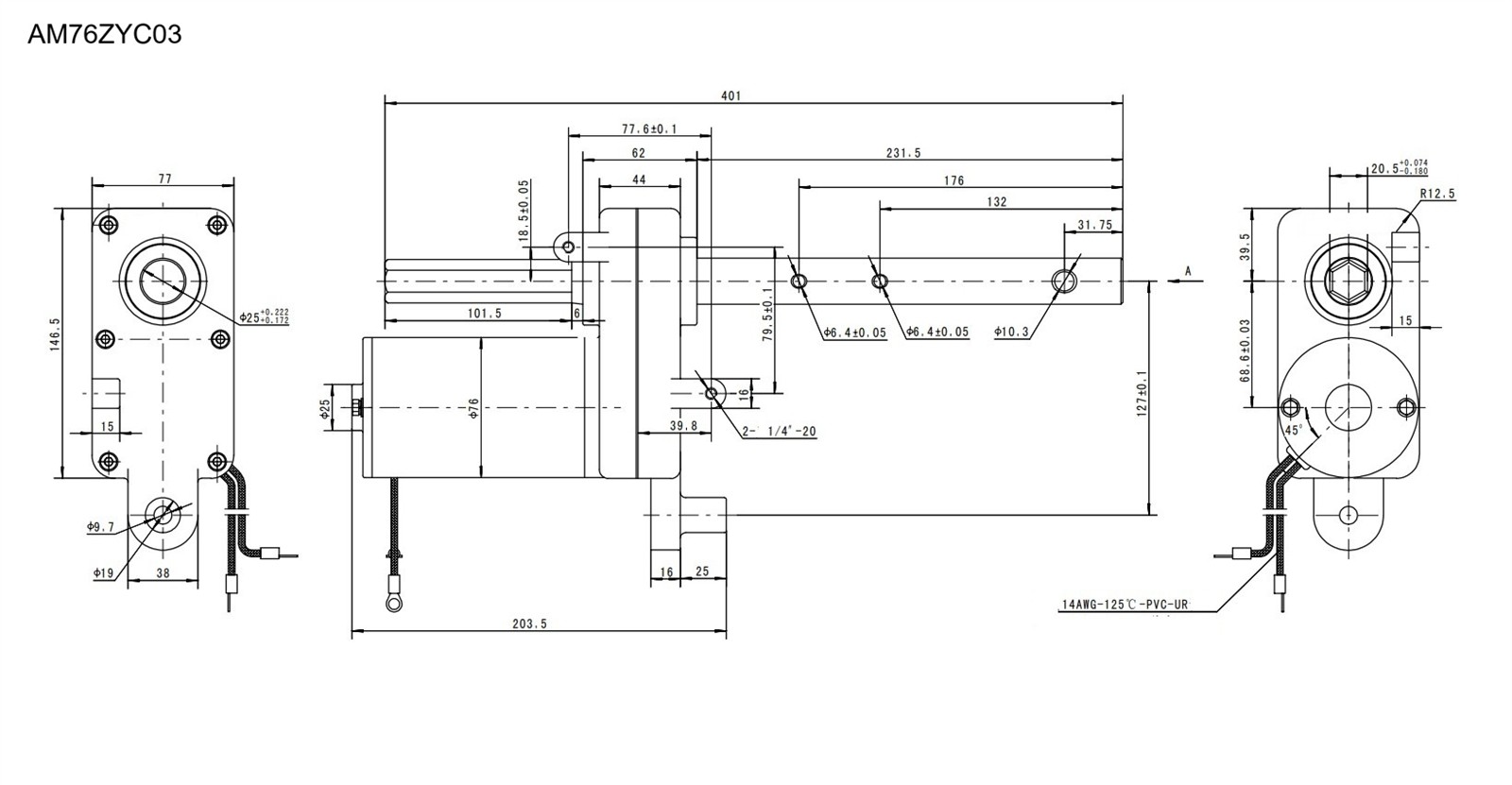

76ZYC03

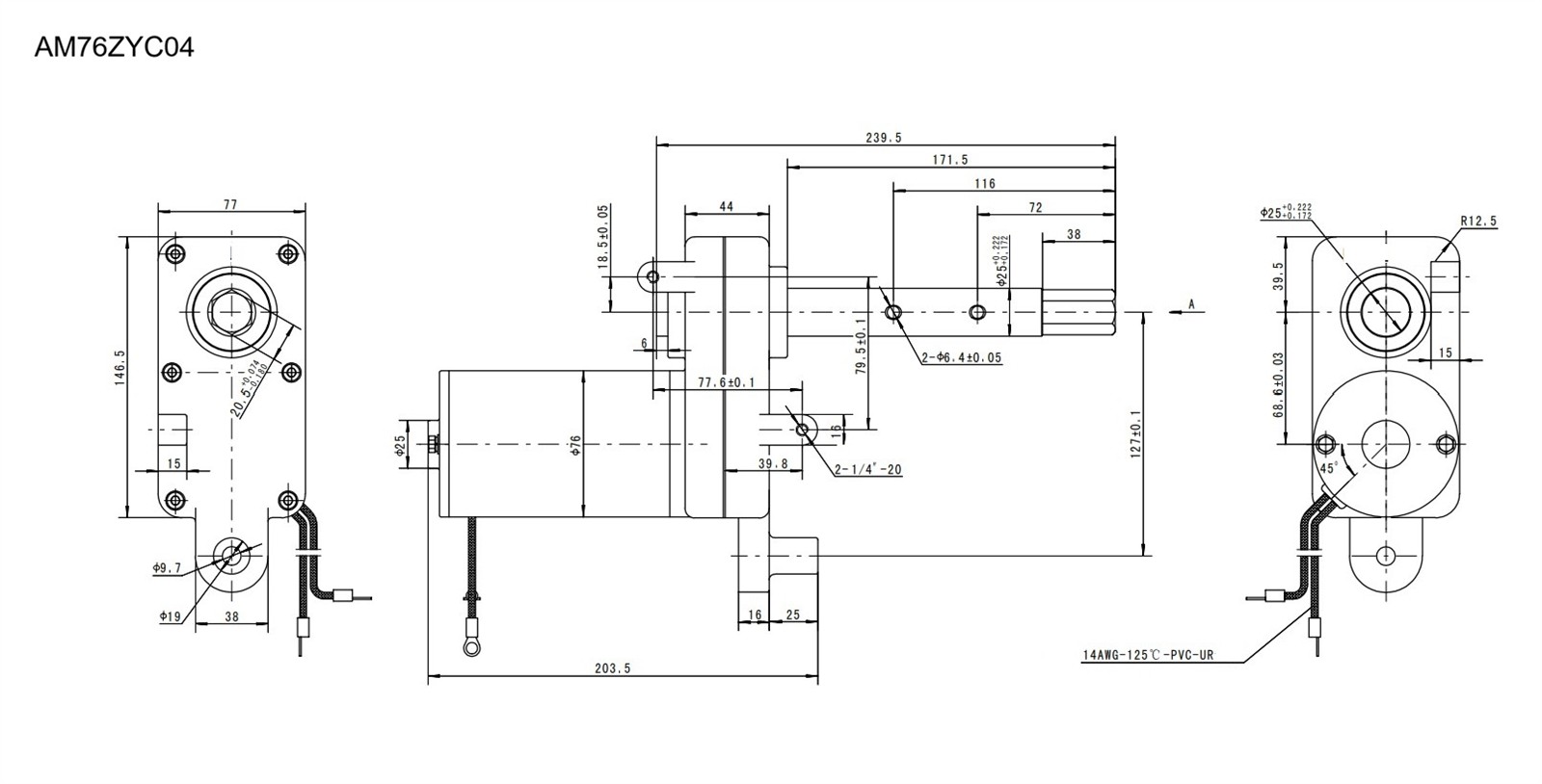

76ZYC04

TYPE	Voltage	Torque	Speed	Current	Working Duty	Protection Class	Ratio
AM76ZYC01	12V DC	15FT-LBS	32RPM	11A	S1	IP54 - 55	99.93: 1
AM76ZYC02	12V DC	45FT-LBS	25RPM	34A	S1	IP54 - 55	54.15: 1
AM76ZYC03	12V DC	18.75FT-LBS	32RPM	15A	S1	IP54 - 55	99.93: 1
AM76ZYC04	24V DC	18.75FT-LBS	32RPM	8A	S1	IP54 - 55	99.93: 1

FAQ

Q1: Is the torque of this 24V DC Gear Motor High Torque continuous torque or peak torque?

AURIC provides rated continuous torque parameters, as well as peak torque range.
We recommend selecting a model based on your actual operating cycle to avoid prolonged operation at peak torque.
If you can provide load data, we can also assist in calculating the safety factor.

Q2: Will the current be too high during high torque output?

In a 24V system, high torque does increase current demand.
However, AURIC's 24V DC gear motor high torque has optimized the magnetic circuit structure and reduction gear matching, allowing the torque increase to come more from mechanical amplification, rather than simply increasing current.
Therefore, at the same output torque, current control is more reasonable.

Q3: Is it suitable for continuous long-term operation?

It can support continuous operation, but a suitable model needs to be matched according to the load ratio.
If the operating conditions are low-speed, high-load continuous operation or frequent start-stop, we recommend providing detailed operating cycles so we can recommend a more suitable reduction ratio and specifications to ensure temperature rise remains within a safe range.

Q4: Do you support customized output shafts or mounting structures?

Our products support customized output shaft diameters and lengths, keyways or special connection structures, mounting flange sizes, and different reduction ratios.
For project-based customers, we can also adjust the structure according to equipment interface requirements.

Q5: What is the minimum order quantity? Do you support sample testing?

We support sample testing and small-batch trial orders.
For new project development, we recommend conducting actual working condition verification before mass production to reduce the cost of later modifications.

Q6: How do you ensure consistency in batch orders?

All AURIC motor products undergo strict parameter standardization management during the production process, such as torque output range control, operating noise detection, and factory dynamic testing. We ensure the performance stability of products within the same batch, reducing after-sales risks caused by batch differences.

If your project requires low-voltage power supply, high-load start-up, long-term operation, and a compact design, then this 24V DC gear motor with high torque from AURIC is your ideal choice.
