Product Applications
This motor can be used in automation equipment, CNC machine tools, robotics, textile machinery, packaging equipment, and electric vehicles. It maintains stable output in both continuous operation and dynamic control environments, providing precise speed and torque control for various industrial systems.
Product Advantages
High Efficiency and Energy-Saving Operation: The permanent magnet structure effectively reduces energy loss, improving overall system efficiency.
Low Noise and Spark-Free Operation: The brushless design eliminates mechanical friction for smoother and quieter operation.
Precise Control: Compatible with a variety of DC servo motor controllers for high-precision speed and position control.
Compact Structure and Stable Performance: Manufactured from high-strength materials, it offers excellent heat dissipation and continuous operation.
Maintenance-Free Design: No carbon brushes to wear, significantly reducing maintenance frequency and operating costs.
Customization Available: Voltage, speed, output shaft shape, and mounting method can be customized to meet customer requirements.
Product Technology
AURIC's products utilize high-performance neodymium iron boron (NdFeB) permanent magnets and high-purity copper wire windings to ensure maximum magnetic effect and electrical conductivity. Each motor undergoes dynamic balancing, insulation resistance, and temperature rise testing before shipment. Key components are precision-machined using CNC machining to ensure rotor concentricity and overall assembly accuracy, ensuring the motor remains stable and reliable even under high loads.

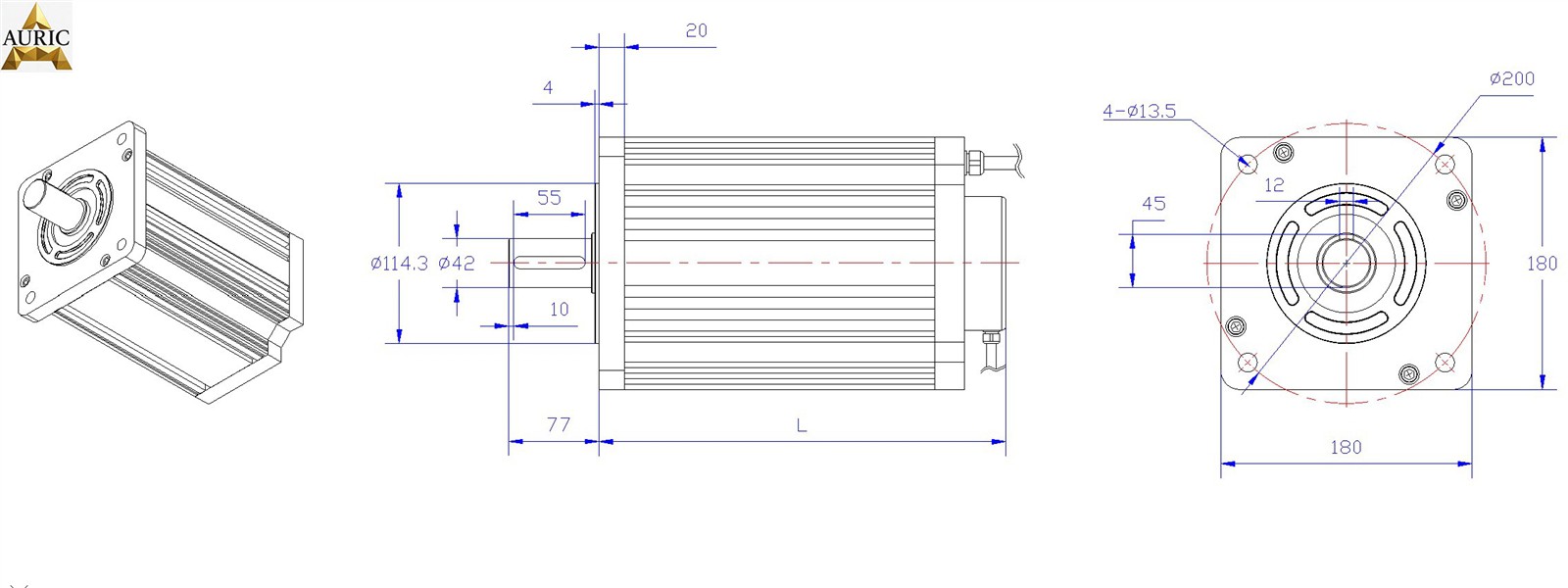

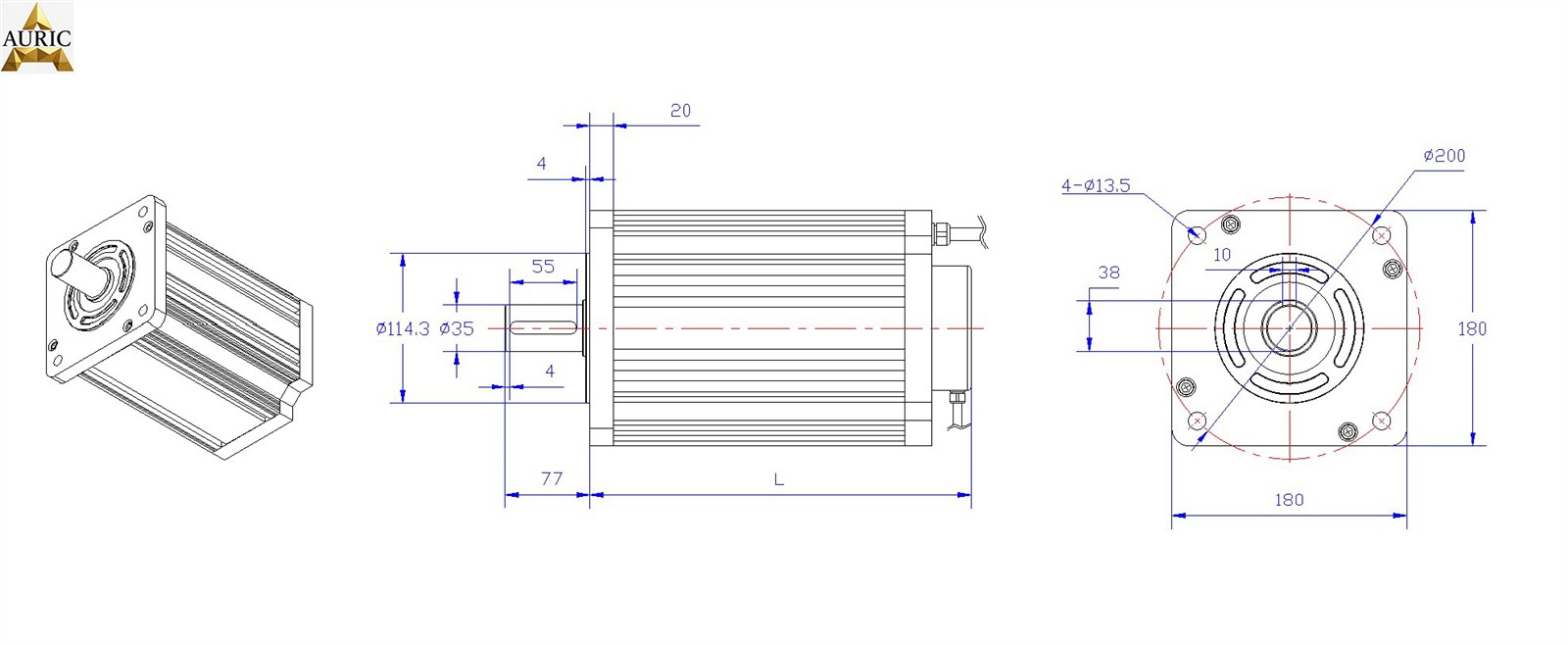

Outline dimension table
Performance parameter table
| Model | Voltage (V) | Power (KW) | No-load Speed (rpm) | Rated Speed (rpm) | Rated Current (A) | Rated Torque (N·m) | Peak Torque (N·m) | No-load Current (A) | Motor Length L (mm) |
| 180BL48-5000-30 | 48 | 5 | 3600 | 3000 | 123 | 16 | 40 | <41 | 235 |
| 180BL72-5000-30 | 72 | 5 | 3600 | 3000 | 82 | 16 | 40 | <27.3 | 235 |
| 180BL96-5000-30 | 96 | 5 | 3600 | 3000 | 65 | 16 | 40 | <21.7 | 235 |
| 180BL310-5000-30 | 310 | 5 | 3600 | 3000 | 20 | 16 | 40 | <7.1 | 235 |
| 180BL48-6000-30 | 48 | 6 | 3600 | 3000 | 147 | 19 | 47.5 | <49 | 256 |
| 180BL72-6000-30 | 72 | 6 | 3600 | 3000 | 123 | 19 | 47.5 | <41 | 256 |
| 180BL96-6000-30 | 96 | 6 | 3600 | 3000 | 78 | 19 | 47.5 | <26 | 256 |
| 180BL310-6000-30 | 310 | 6 | 3600 | 3000 | 24 | 19 | 47.5 | <8 | 256 |
| 180BL48-7500-30 | 48 | 7.5 | 3600 | 3000 | 184 | 25 | 62.5 | <61 | 273 |
| 180BL72-7500-30 | 72 | 7.5 | 3600 | 3000 | 130 | 25 | 62.5 | <43 | 273 |
| 180BL96-7500-30 | 96 | 7.5 | 3600 | 3000 | 98 | 25 | 62.5 | <33 | 273 |
| 180BL310-7500-30 | 310 | 7.5 | 3600 | 3000 | 30 | 25 | 62.5 | <11 | 273 |
| 180BL48-8500-20 | 48 | 8.5 | 2400 | 2000 | 208 | 42 | 84 | <74 | 328 |
| 180BL72-8500-20 | 72 | 8.5 | 2400 | 2000 | 148 | 42 | 84 | <53 | 328 |
| 180BL96-8500-20 | 96 | 8.5 | 2400 | 2000 | 111 | 42 | 84 | <37 | 328 |
| 180BL310-8500-20 | 310 | 8.5 | 2400 | 2000 | 34.1 | 42 | 84 | <11 | 328 |
| 180BL48-10000-20 | 48 | 10 | 2400 | 2000 | 245 | 50 | 100 | <82 | 345 |
| 180BL72-10000-20 | 72 | 10 | 2400 | 2000 | 163 | 50 | 100 | <58 | 345 |
| 180BL96-10000-20 | 96 | 10 | 2400 | 2000 | 123 | 50 | 100 | <41 | 345 |
| 180BL310-10000-20 | 310 | 10 | 2400 | 2000 | 38 | 50 | 100 | <14 | 345 |
| 180BL72-11000-30 | 72 | 11 | 3600 | 3000 | 180 | 36 | 75 | <66 | 311 |
| 180BL96-11000-30 | 96 | 11 | 3600 | 3000 | 135 | 36 | 75 | <49 | 311 |
| 180BL310-11000-30 | 310 | 11 | 3600 | 3000 | 42 | 36 | 75 | <15 | 311 |
| 180BL72-13000-30 | 72 | 13 | 3600 | 3000 | 212 | 42 | 84 | <78 | 328 |
| 180BL96-13000-30 | 96 | 13 | 3600 | 3000 | 159 | 42 | 84 | <58 | 328 |
| 180BL310-13000-30 | 310 | 13 | 3600 | 3000 | 49 | 42 | 84 | <18 | 328 |
| 180BL72-15000-30 | 72 | 15 | 3600 | 3000 | 245 | 50 | 100 | <88 | 345 |
| 180BL96-15000-30 | 96 | 15 | 3600 | 3000 | 184 | 50 | 100 | <66 | 345 |
| It can be customized according to your requirements, including parameters such as voltage, power, rotational speed, and installation dimensions. | |||||||||
Packaging and Shipping
Each motor is packaged in shock- and moisture-proof foam packaging and packed in reinforced export cartons or wooden boxes to ensure safe transportation. Depending on the order quantity and destination, we can arrange shipping via DHL, FedEx, UPS, or ocean freight. Standard delivery time is 7–15 business days after order confirmation.
If you are looking for an efficient and stable permanent magnet brushless DC motor for automation equipment or motion control systems, please contact me directly for detailed technical specifications, customization options, or a quote. I will help you find the most suitable motor solution to improve equipment performance and production efficiency.
