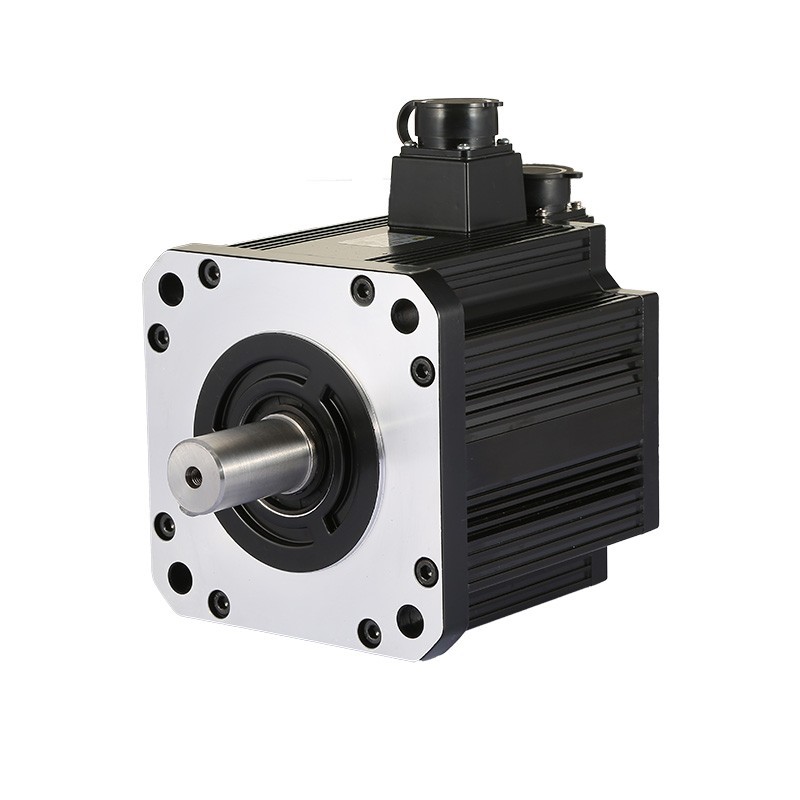

48v 3000w Brushless Motor

AURIC's 48V 3000W brushless motor is designed for power systems requiring high output and reliability, balancing torque, efficiency, and durability. It utilizes high-density rare earth permanent magnets and a high-conductivity copper winding structure to achieve strong power with low energy consumption.

With built-in Hall sensors and a high-precision rotor positioning system, the motor achieves smooth control and stable starting and stopping at both high and low speeds. Its efficient cooling design and fully enclosed housing provide excellent dust and heat dissipation.

1. Performance and Reliability
Factory load test report or third-party certification. The motor has a rated power of 3000W and a peak power of 3500W. The starting response time is less than 0.1 second, which is 8% more energy efficient than similar power products.

2. Consistency and Quality Control
The high-density NdFeB permanent magnets and optimized winding structure achieve high starting torque and linear acceleration performance. The product undergoes dynamic balancing calibration, winding insulation withstand voltage testing, and complete machine life testing. It complies with ISO9001/CE/RoHS standards and can provide a test report.

3. Efficiency and Heat Control
The high-efficiency copper wire winding and low-loss core design achieve an overall efficiency of over 90%, effectively reducing energy loss and temperature rise.

4. Insulation Grade and Protection
The coil uses a Class F insulation system that can withstand temperatures of 155°C. The enclosure is IP54 rated, suitable for outdoor or complex industrial environments.

5. Stability and Lifespan
The 48V 3000W brushless motor utilizes imported high-precision bearings and a vacuum-impregnated finish. It has been tested for continuous operation and boasts a lifespan exceeding 15,000 hours.

6. Protection and Safety Mechanisms
Its IP54 rating meets CE safety requirements and features a built-in NTC temperature sensor and overcurrent protection circuit.

7. Testing and Verification
Each motor undergoes 100% performance testing before shipment, including dynamic balancing, insulation withstand voltage testing, and continuous load operation testing.

Electric Vehicles: Electric motorcycles and electric tricycles

Industrial Automation: Used in conveyor equipment and robotic arms

Agricultural Machinery: Used in automated sprayers and planting equipment

Robotics: High speed and precise control ensure smooth and efficient movement.

With 15 years of industry experience, we specialize in motor design and production, and possess mature OEM/ODM capabilities.

Jointly developed with Shandong University of Technology, we ensure advanced product technology and reliable design.

ISO9001 quality system and CE/RoHS certifications ensure full factory inspection.

Fast delivery: Samples ship within 3 days, and mass production takes only 2-3 weeks.

Technical support: One-on-one selection and control system matching services.

We use triple protective packaging with shock-resistant foam, moisture-proof bags, and export wooden boxes. Each motor comes with a test report and nameplate label. We support sea, air, and express delivery to ensure safe and intact delivery.

Make power more efficient and reliable.
Contact me today to get a technical solution and a custom quote for a 48V 3000W brushless motor suitable for your system.
