Performance & Reliability
For wholesale buyers, the stability of motor performance directly determines the long-term safe operation of their equipment.
For this reason, AURIC prioritizes energy efficiency, torque stability, and heat dissipation when designing each motor. This results in higher magnetic flux density and approximately 15%–25% higher starting torque.
The use of high-conductivity pure copper wire windings reduces energy loss and maintains efficiency above 90%.
All motors undergo continuous operation endurance testing (over 5,000 hours) to ensure stable output under high-temperature and high-load conditions.
Tests show that AURIC brushless motors generate 12% less heat than similar products in the same power range and are approximately 8% more efficient.
Quality Consistency
Most customers worry about having excellent performance in their first batch of products, but inconsistent quality in subsequent orders.
AURIC Motors has implemented a full-process quality traceability system within its factory to ensure consistent performance across batches.
We strictly adhere to the ISO 9001:2015 quality system.
Each motor undergoes a 72-hour continuous full-load test before shipment.
We utilize automated winding equipment, CNC precision machining centers, and servo inspection systems to ensure assembly accuracy.
Each batch of products is individually serialized, allowing traceability of production time and inspection reports.
Customization & Compatibility
At AURIC, we offer flexible OEM/ODM customization services, allowing for personalized adjustments from size to control interface.
Voltage ranges (12V–310V DC) and power ranges (50W–10kW) are customizable.
Square shaft, round shaft, dual-output shaft, and hollow shaft configurations are available.
Multiple signal feedback methods are available (Hall, encoder, and sensorless).
Compatible with mainstream control systems such as PWM, RS485, CANopen, and Modbus.

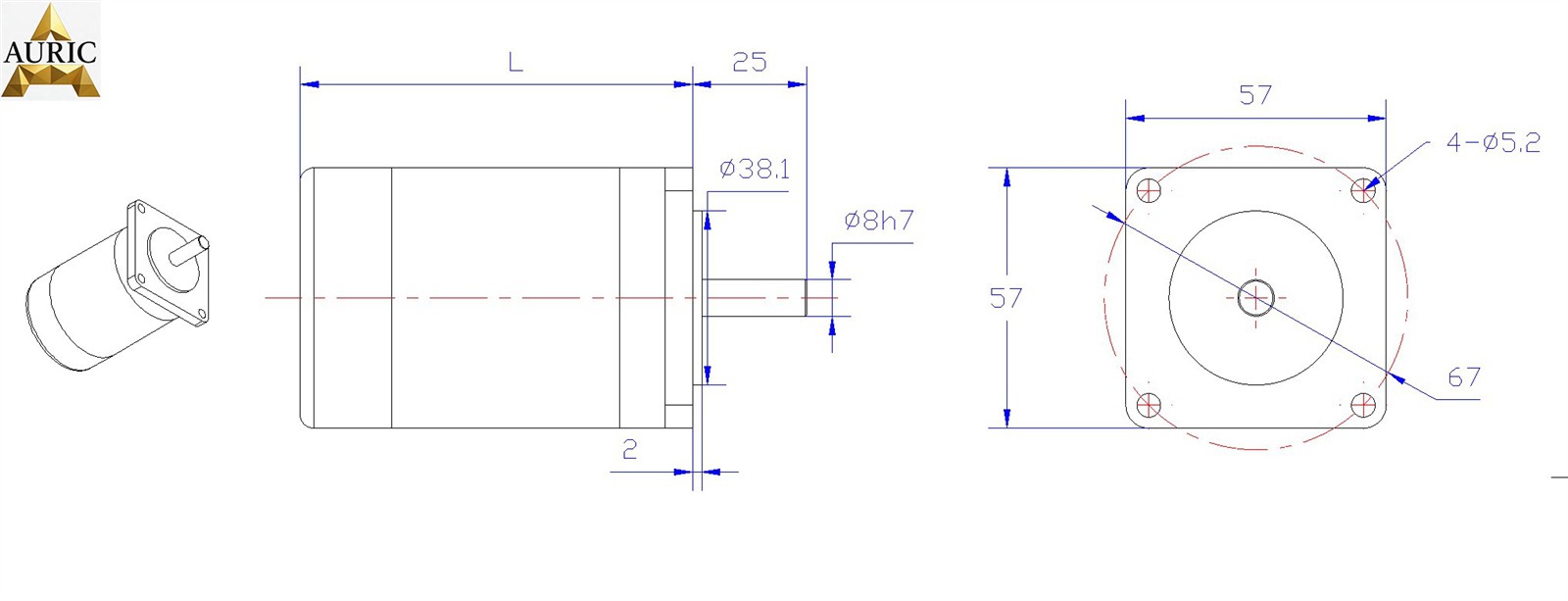

Motor Parameter Table
| Model | Voltage (V) | Power (W) | No-load Speed (rpm) | Rated Speed (rpm) | Rated Current (A) | Rated Torque (N·m) | Peak Torque (N·m) | No-load Current (A) | Motor Length L (mm) |
| 57BL12-30-30 | 12 | 30 | 3300 | 3000 | 3.13 | 0.1 | 0.29 | <0.6 | 55 |
| 57BL24-30-30 | 24 | 30 | 3300 | 3000 | 1.56 | 0.1 | 0.29 | <0.4 | 55 |
| 57BL36-30-30 | 36 | 30 | 3300 | 3000 | 1.04 | 0.1 | 0.29 | <0.3 | 55 |
| 57BL310-30-30 | 310 | 30 | 3300 | 3000 | 0.12 | 0.1 | 0.29 | <0.2 | 55 |
| 57BL12-50-30 | 12 | 50 | 3300 | 3000 | 5.21 | 0.16 | 0.48 | <0.8 | 75 |
| 57BL24-50-30 | 24 | 50 | 3300 | 3000 | 2.6 | 0.16 | 0.48 | <0.4 | 75 |
| 57BL36-50-30 | 36 | 50 | 3300 | 3000 | 1.74 | 0.16 | 0.48 | <0.3 | 75 |
| 57BL310-50-30 | 310 | 50 | 3300 | 3000 | 0.2 | 0.16 | 0.48 | <0.2 | 75 |
| 57BL12-75-30 | 12 | 75 | 3300 | 3000 | 7.81 | 0.24 | 0.72 | <1.0 | 75 |
| 57BL24-75-30 | 24 | 75 | 3300 | 3000 | 3.91 | 0.24 | 0.72 | <0.7 | 75 |
| 57BL36-75-30 | 36 | 75 | 3300 | 3000 | 2.6 | 0.24 | 0.72 | <0.5 | 75 |
| 57BL48-75-30 | 48 | 75 | 3300 | 3000 | 1.95 | 0.24 | 0.72 | <0.4 | 75 |
| 57BL310-75-30 | 310 | 75 | 3300 | 3000 | 0.3 | 0.24 | 0.72 | <0.3 | 75 |
| 57BL12-100-30 | 12 | 100 | 3300 | 3000 | 10.42 | 0.32 | 0.96 | <1.2 | 95 |
| 57BL24-100-30 | 24 | 100 | 3300 | 3000 | 5.21 | 0.32 | 0.96 | <0.8 | 95 |
| 57BL36-100-30 | 36 | 100 | 3300 | 3000 | 3.47 | 0.32 | 0.96 | <0.6 | 95 |
| 57BL48-100-30 | 48 | 100 | 3300 | 3000 | 2.6 | 0.32 | 0.96 | <0.4 | 95 |
| 57BL310-100-30 | 310 | 100 | 3300 | 3000 | 0.4 | 0.32 | 0.96 | <0.3 | 95 |
| 57BL12-150-30 | 12 | 150 | 3300 | 3000 | 15.63 | 0.48 | 1.43 | <1.5 | 115 |
| 57BL24-150-30 | 24 | 150 | 3300 | 3000 | 7.81 | 0.48 | 1.43 | <1.0 | 115 |
| 57BL36-150-30 | 36 | 150 | 3300 | 3000 | 5.21 | 0.48 | 1.43 | <0.8 | 115 |
| 57BL48-150-30 | 48 | 150 | 3300 | 3000 | 3.91 | 0.48 | 1.43 | <0.6 | 115 |
Cost & Lead Time
We adhere to a reasonable cost structure, ensuring value for money and stable supply.
We operate our own parts processing center, reducing intermediary costs.
We maintain a safety stock of standard models and deliver orders within 7–15 business days.
We partner with multiple international logistics companies (DHL, CMA, and FedEx) to ensure timely delivery.
Control Compatibility
Supports multiple control modes: Sensorless, Hall Effect, and Encoder.
Compatible with mainstream controller brands (such as ABB, Delta, and Yaskawa).
Detailed wiring diagrams and technical documentation are provided to help customers debug quickly.
This system enables constant speed operation, precise speed regulation, and soft start control, reducing system commissioning time by up to 30%.
Mechanical Design & Build Quality
Appearance and structure not only impact the lifespan but also the brand image of the end device.
AURIC's motor housings are made of high-strength aluminum alloy, which reduces weight while improving heat dissipation.
The stator's varnishing process prevents short circuits and corrosion in humid environments.
The rotor is dynamically balanced to ensure low vibration and noise during operation.
The housing is anodized for enhanced wear and corrosion resistance.
Test results show that the motor's operating noise level is ≤55dB, making it suitable for medical and laboratory equipment environments.
Applications & Case Studies
Automated production lines: An assembly line project in America has been operating flawlessly for two years.
Robotic systems: High-torque BLDC motors help Korean logistics AGVs achieve precise positioning.
Electric vehicle projects: 36V brushless motors help Brazilian customers increase driving range by 20%.
Proven performance: Approximately 65% of exported motors in last year will be used in automation and mobility systems.
After-Sales & Technical Support
We provide a comprehensive service system to ensure worry-free after-sales service.
All products come with a 12-month warranty (extended warranty available).
Our engineers provide online technical guidance and commissioning assistance.
We offer a 24-hour response mechanism, with documented and reliable problem resolution.
We provide long-term spare parts and repair support to ensure sustainable project operation.
AURIC's goal: To help customers "not just buy a motor, but also gain a technical partner."
