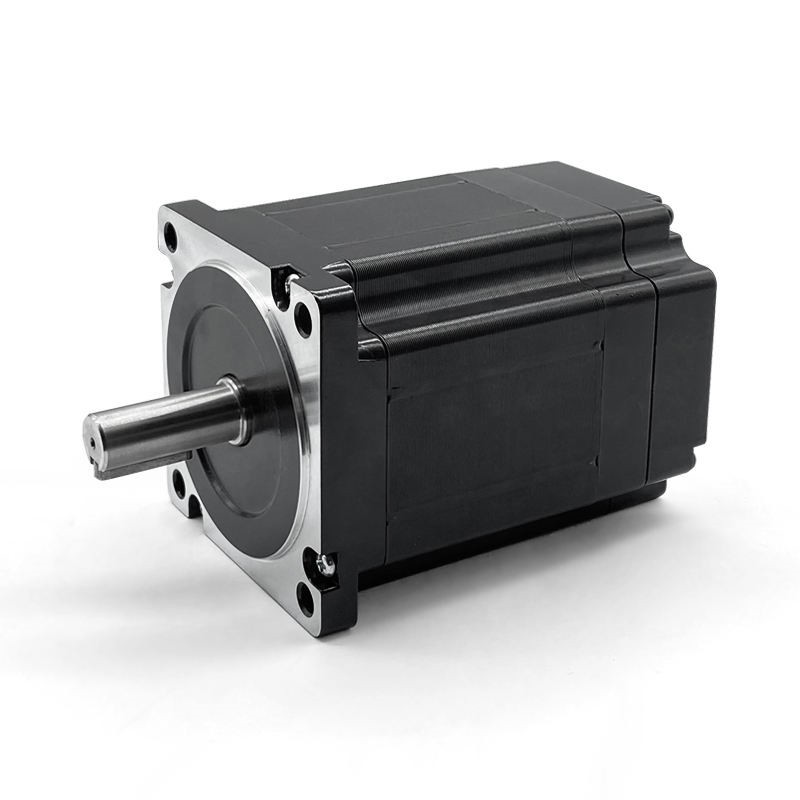

The Excellence of a 36V Brushless Motor
Most DC motors struggle to balance power and efficiency, but this 36V brushless DC motor bridges the gap.
Unlike traditional brushed motors, this motor eliminates friction and wear, providing a longer lifespan, quiet operation, and smooth torque output, even under heavy loads.
Application areas and performance
Electric vehicles and electric scooters: High starting torque and continuous output enable faster acceleration and longer driving range.
Automated production lines: Maintaining a constant speed under complex working conditions ensures efficient equipment operation.
Robots and AGVs (Automated Guided Vehicles): Lightweight design reduces energy consumption, improves maneuverability, and enhances positioning accuracy.
Pump and fan systems: Continuously low-noise operation ensures stable performance in long-duration operating environments.
Product Advantages
1. Performance and Reliability: Stable motor operation and continuous operating time (>5000 hours of trouble-free operation)
2. Conformity and Quality Control: 100% pre-shipment inspection, CE/RoHS certification, and ISO9001 quality control procedures
3. OEM/ODM: Customizable voltage range, dimensions, tolerances, interfaces, and more are supported, with engineering drawings provided
4. Cost and Delivery: Small trial orders are supported, with a 7–15 day lead time. Standard models are in stock
5. Control Compatibility: Compatible controller models or protocols (e.g., PWM/RS485/Canopen) are specified in the technical specifications
6. Appearance and Construction: Aluminum alloy housing, surface oxidation treatment, and waterproofing
7. Application Examples and Reputation: Applications in European robotics projects, electric scooter drive systems, etc.
8. Logistics and Packaging: (foam + wooden boxes), international logistics partners, and insurance
9. After-Sales and Technical Support: Technical guidance, a one-year warranty, and an online engineer response mechanism
Motor Parameter Table
| Model | Voltage (V) | Power (W) | No-load Speed (rpm) | Rated Speed (rpm) | Rated Current (A) | Rated Torque (N·m) | Peak Torque (N·m) | No-load Current (A) | Motor Length L (mm) |
| 86BL12-90-30 | 12 | 90 | 3300 | 3000 | 9.38 | 0.29 | 0.86 | <0.85 | 60 |
| 86BL24-90-30 | 24 | 90 | 3300 | 3000 | 4.69 | 0.29 | 0.86 | <0.70 | 60 |
| 86BL36-90-30 | 36 | 90 | 3300 | 3000 | 3.13 | 0.29 | 0.86 | <0.60 | 60 |
| 86BL48-90-30 | 48 | 90 | 3300 | 3000 | 2.34 | 0.29 | 0.86 | <0.50 | 60 |
| 86BL310-90-30 | 310 | 90 | 3300 | 3000 | 0.36 | 0.29 | 0.86 | <0.30 | 60 |
| 86BL12-150-30 | 12 | 150 | 3300 | 3000 | 15.63 | 0.48 | 1.43 | <5.20 | 70 |
| 86BL24-150-30 | 24 | 150 | 3300 | 3000 | 7.81 | 0.48 | 1.43 | <3.13 | 70 |
| 86BL36-150-30 | 36 | 150 | 3300 | 3000 | 5.21 | 0.48 | 1.43 | <2.60 | 70 |
| 86BL48-150-30 | 48 | 150 | 3300 | 3000 | 3.91 | 0.48 | 1.43 | <1.61 | 70 |
| 86BL310-150-30 | 310 | 150 | 3300 | 3000 | 0.6 | 0.48 | 1.43 | <0.30 | 70 |
| 86BL12-200-30 | 12 | 200 | 3300 | 3000 | 20.83 | 0.64 | 1.91 | <6.20 | 70 |
| 86BL24-200-30 | 24 | 200 | 3300 | 3000 | 10.42 | 0.64 | 1.91 | <4.13 | 70 |
| 86BL36-200-30 | 36 | 200 | 3300 | 3000 | 6.94 | 0.64 | 1.91 | <2.50 | 70 |
| 86BL48-200-30 | 48 | 200 | 3300 | 3000 | 5.21 | 0.64 | 1.91 | <1.61 | 70 |
| 86BL310-200-30 | 310 | 200 | 3300 | 3000 | 0.81 | 0.64 | 1.91 | <0.40 | 70 |
| 86BL12-300-30 | 12 | 300 | 3300 | 3000 | 31.25 | 0.96 | 2.87 | <7.20 | 80 |
| 86BL24-300-30 | 24 | 300 | 3300 | 3000 | 15.63 | 0.96 | 2.87 | <6.13 | 80 |
| 86BL36-300-30 | 36 | 300 | 3300 | 3000 | 10.42 | 0.96 | 2.87 | <3.50 | 80 |
| 86BL48-300-30 | 48 | 300 | 3300 | 3000 | 7.81 | 0.96 | 2.87 | <2.61 | 80 |
| 86BL310-300-30 | 310 | 300 | 3300 | 3000 | 1.21 | 0.96 | 2.87 | <0.70 | 80 |
| 86BL12-450-30 | 12 | 450 | 3300 | 3000 | 46.88 | 1.43 | 4.3 | <10.20 | 90 |
It can be customized according to your requirements, including parameters such as voltage, power, rotational speed, and installation dimensions.
Why wholesale customers choose Zibo AURIC Electromechanical Technology Co., Ltd.
In the global motor supply chain, We understand that wholesale customers are most concerned not with price alone, but with stable quality, reliable delivery, and ongoing technical support.
For this reason, We adhere to strict standards at every stage, ensuring that every motor maintains consistent performance across different markets.
We offer a one-year quality guarantee, with extended warranty options available.
Our engineering team provides comprehensive technical guidance, including motor selection, commissioning, and control solution recommendations.
24-hour online support ensures rapid problem resolution.
Long-term customers enjoy price protection and priority shipping.
We use recyclable materials (steel, aluminum, and copper) in production, meeting environmental standards.
We utilize energy-saving manufacturing processes, reducing unit energy consumption by 12% compared to 2022 levels.
We have a long-term partnership with Shandong University of Technology to advance the research and development of motor energy efficiency and noise control technologies.
With us, you gain not only a high-performance motor but also a reliable, flexible, and responsible manufacturing partner. AURIC is committed to creating higher value for customers through efficient motor technology and high-quality service.
Contact Zibo AURIC Electromechanical Technology Co., Ltd. today to obtain customized motor solutions and the latest wholesale quotes, ensuring your project operates more stably and efficiently.
Hot Tags: 36v brushless motor, China 36v brushless motor manufacturers, suppliers, factory
