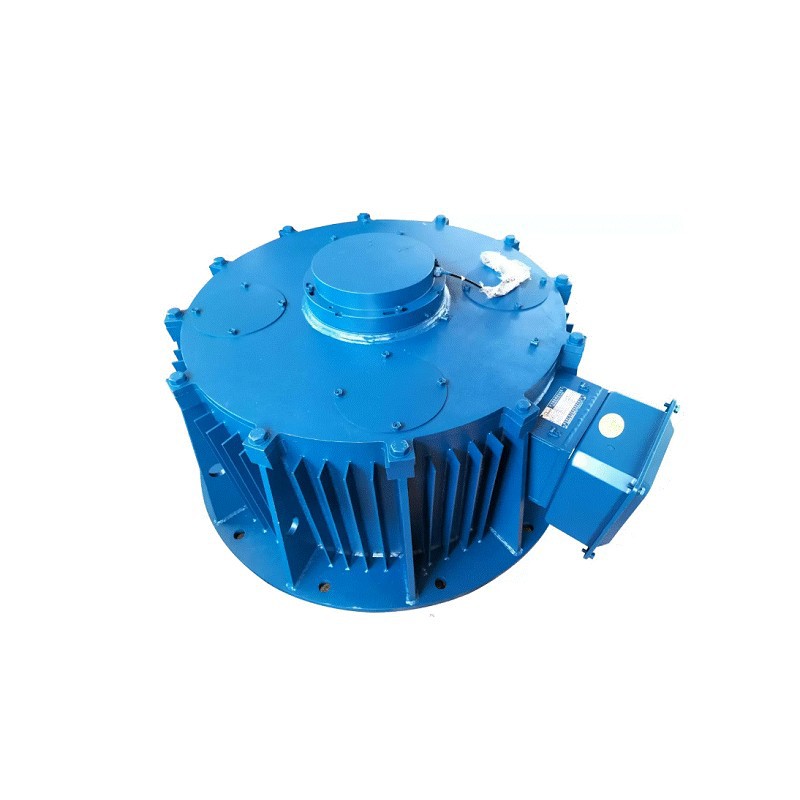

Main Functions

The ADS series direct-drive switched reluctance motor drive system simplifies equipment structure by eliminating mechanical transmission components such as clutches, gearboxes, and pulleys. It enables driven equipment to achieve heavy-duty starting, frequent start-stop operations, and forward-reverse switching. Equipped with advanced digital technology platforms including DSP and CPLD, the system supports servo control functions. For fan and pump applications, it adjusts speed based on pressure and temperature feedback to achieve optimal matching with real-time loads. It can also be integrated with an industrial Internet-based remote monitoring system for equipment operation monitoring, control, and data storage.

Technical Features

Low-speed, high-torque with small starting current: 30% of rated current can output 200% starting torque; maximum starting torque is up to 3.5 times rated torque. Supports frequent start-stop and forward-reverse switching, with over 100 start-stop cycles per minute.
High efficiency at low speeds, low heat generation, natural cooling: No need for cooling fans, eliminating unnecessary downtime and maintenance caused by cooling system failures.
High overall system efficiency and power factor, energy-efficient: System power factor ≥0.95; efficiency characteristic curve is "hard" (stable across operating ranges).
Robust motor structure, impact and vibration resistant, no permanent magnet materials: Rotor has no permanent magnets or coils, eliminating demagnetization risks. High reliability, resistant to high temperatures, vibrations, and impact loads; no performance degradation over time.
High control precision, fast response speed: Integrates servo control algorithms for rapid and precise position, speed, and torque control; speed accuracy ≤0.1%.
Professional engineering application design: Dynamically adjusts motor operating parameters based on load or process requirements of the application scenario to achieve optimal matching.
Convenient maintenance, low maintenance cost: No special tools or equipment required; downtime for maintenance is reduced by over 70% compared to permanent magnet motors.

Technical Specifications

Category	Item	Specification
Controller	Power Input	Input Voltage: 3-phase AC 380V, 415V, 660V, 1140V Voltage Frequency: 50Hz or 60Hz
	Functional Parameters	Capacity: 45–1600 kVA Speed Setting: Operation panel, analog input, communication Start-Stop Control: Operation panel, digital input, communication Feedback Speed Regulation: Accepts external pressure/temperature signals for closed-loop control Speed Accuracy: ≤0.1% Speed Variation Rate: ≤1% PID: Built-in speed and feedback PID control (parameters adjustable) Communication Ports: RS232, RS485, CAN I/O Interfaces: 6 digital inputs, 4 digital outputs, 4 analog inputs, 2 analog outputs (expandable) Protection Functions: Short-circuit, overcurrent, overload, stall, overheating, overvoltage, undervoltage, overspeed Display: Panel shows speed, parameters, fault codes, operational data; expandable to touchscreen with programmable content
	Operating Environment	Application Scenarios: No direct sunlight, no conductive dust, no excessive dust, no acid/base/corrosive gases, no explosive gases Altitude: ≤1000 m (derate above 1000 m) Ambient Temperature: -25℃ to +40℃ (no frost) Relative Humidity: ≤90% (at 20℃, no condensation) Vibration: <5 m/s² Duty Cycle: S1 (continuous duty)
	Structure	Installation: Wall-mounted (45–185 kVA); floor-standing cabinet (200–1600 kVA) Cooling Method: Forced air cooling or industrial air conditioning Protection Class: IP20 (45–185 kVA controllers); IP51 (200–1600 kVA controllers)
	Standards	Controller Standard: Q/0303SKH 062
Motor	Power	37–630 kW
	Rated Voltage	DC 514V (AC 380V), DC 561V (AC 415V), DC 891V (AC 660V), DC 1539V (AC 1140V) (DC voltage after full-wave rectification and filtering of 3-phase AC)
	Insulation Class	180 (H): Uses 200-grade corona-resistant enameled wire and DuPont solvent-free impregnating varnish; vacuum pressure impregnation (VPI)
	Duty Cycle	S1: Continuous duty
	Protection Class	IP54 (dust-tight, splash-proof)
	Cooling Method	Optional self-fan cooling or independent fan cooling
	Overload Capacity	1.5× rated torque: ≤60 s 2× rated torque: ≤30 s 3× rated torque: ≤15 s Average torque within 300 s must not exceed rated torque
	Temperature Detection	Motor winding embedded with temperature relay or sensor; connects to controller for thermal protection
	Standards	Motor Standard: Q/0303SKH 061

Outline dimension table

product-1492-722

INSTALLATION DIMENSIONS(mm)
Type	A	B	E	K	M	N	P	S	T	AB	AC	AD	L
ADS-4501-3	750	430	180	12 - Φ33	1020	900	1150	12 - Φ26	20	830	900	775	630
ADS-4502-2.5													745
ADS-4503-2.5													805
ADS-6301-2.2	850	500	200	12 - Φ39	1300	1150	1400	12 - Φ33	25	1000	1150	930	645
ADS-6302-2.2													685
ADS-6303-2													815
ADS-6304-2													875
ADS-6305-1.8													1025
ADS-8001-1.8	950	540	220	12 - Φ45	1600	1450	1750	12 - Φ39	30	1100	1350	1025	1010
ADS-8002-1.6													1240
ADS-9001-1.6	1000	730	230	12 - Φ48	1750	1550	1950	12 - Φ45	35	1200	1600	1200	840
ADS-9002-1.4													1110
ADS-10001-1.4	1300	850	240	12 - Φ52	1950	1750	2150	12 - Φ48	40	1450	1800	1300	1045
ADS-10002-1.3													1245
ADS-10003-1.2													1530

Performance parameter table

Performance Parameter
Type	power (KW)	speed (r/min)	Torque (N·m)	Start Torque (N·m)	Rotor Inertia (Kg.㎡)	Weight(KG)	Controller Power(KW)
ADS-4501-3	22	300	701	2460	33	1620	55
ADS-4502-2.5	30	250	1150	4030	39	2160	75
ADS-4503-2.5	37	250	1420	4970	41	2400	90
ADS-6301-2.2	45	220	1960	6860	58	2930	110
ADS-6302-2.2	55	220	2390	8370	71	3150	132
ADS-6303-2	75	200	3590	12600	88	3670	200
ADS-6304-2	90	200	4300	15100	96	3990	250
ADS-6305-1.8	110	180	5840	20500	116	4700	315
ADS-8001-1.8	160	180	8490	29800	230	6200	400
ADS-8002-1.6	200	160	12000	42000	281	7730	500
ADS-9001-1.6	250	160	15000	52500	355	9220	630
ADS-9002-1.4	315	140	21500	75300	485	10500	800
ADS-10001-1.4	400	140	27300	95600	847	12200	1000
ADS-10002-1.3	500	130	36800	129000	994	15400	1260
ADS-10003-1.2	630	120	50200	176000	1200	19900	1500
