Product Advantages

High Power Density Output

The three-phase 380V power supply structure enables higher output power per unit volume and more stable high torque output, suitable for medium to high power applications.

High-Precision Closed-Loop Control

AAURIC's products, equipped with high-resolution encoders, achieve precise position control, rapid acceleration and deceleration response, and stable repeatability, making them suitable for automated equipment with high motion control precision requirements.

Low Vibration and Smooth Operation

This product features optimized electromagnetic design and dynamic balance control, ensuring low torque fluctuations and stable high-speed operation. It reduces mechanical shock and helps extend the overall lifespan of the machine.

High Efficiency and Energy Saving

The 380V servo system draws less current and has lower losses during medium to high power operation. Its controllable thermal management reduces overall energy costs for long-term industrial equipment operation.

Industry Applications

CNC Machine Tools
Industrial Robots
Automated Assembly Lines
Packaging and Printing Equipment
Textile Machinery
Logistics Conveying Systems

Key parameters to consider when selecting a servo drive

Rated power and peak power

Rated torque and peak torque

Rated speed range

Encoder resolution

Protection class (IP rating)

Cooling method

In addition, consider:

Compatibility with the servo drive

Duty cycle

Proper matching can prevent overload operation or system vibration problems.

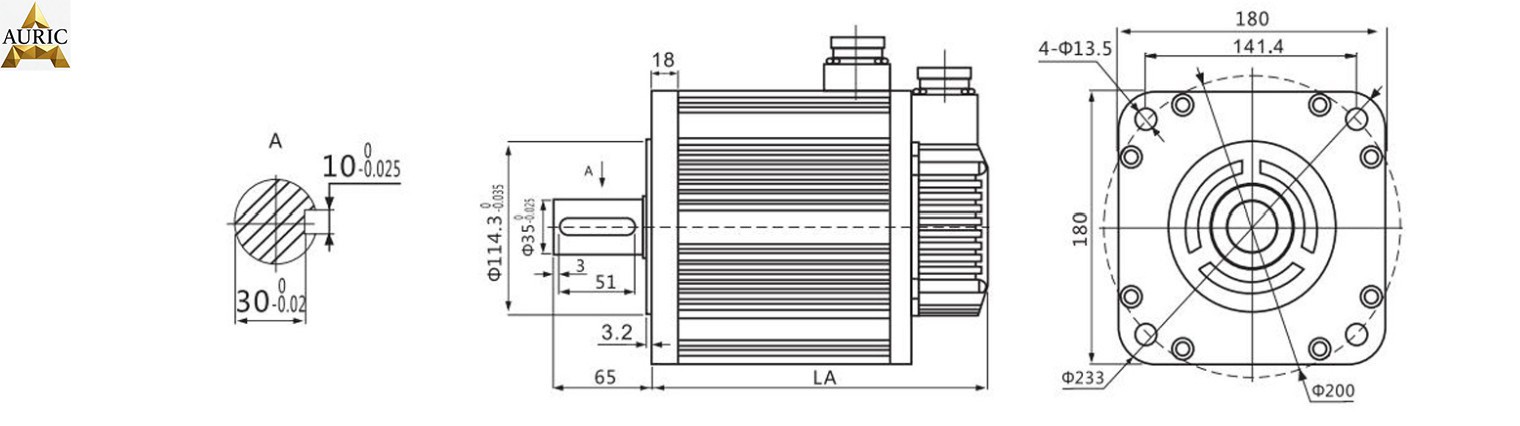

Outline dimension table

product-1520-426

Performance Parameter
TYPE	A180ST-M3827	A180ST-M2227	A180ST-M3830	A180ST-M2230	A180ST-M3845	A180ST-M2245	A180ST-M3829	A180ST-M2229
LA(mm)	226	226	232	232	243	243	262	262
With Brake(mm)	298	298	304	304	315	315	334	334

It can be customized according to your requirements, including parameters such as voltage, power, rotational speed, and installation dimensions.

Performance Parameter
TYPE	A180ST-M3843	A180ST-M2243	A180ST-M3837	A180ST-M2237	A180ST-M3855	A180ST-M2255	A180ST-M3875	A180ST-M2275
LA(mm)	262	262	292	292	292	292	346	346
With Brake(mm)	334	334	364	364	364	364	418	418

Performance parameter table

Performance Parameter
TYPE	A180ST-M3827	A180ST-M2227	A180ST-M3830	A180ST-M2230	A180ST-M3845	A180ST-M2245	A180ST-M3829	A180ST-M2229
Rated Output (W)	2700	2700	3000	3000	4500	4500	2900	2900
Rated Voltage(V)	380	220	380	220	380	220	380	220
Rated Current(A)	6.5	10.5	7.5	12	9.5	16	7.5	12
Rated Speed(RPM)	1500	1500	1500	1500	2000	2000	1000	1000
Rated Torque(N.m)	17.2	17.2	19	19	21.5	21.5	27	27
Instantaneous Peak Torque(N.m)	43	43	47	47	53	53	67	67
Max. Motor EMF(V/1000r/min)	167	112	158	94	140	84	224	138
Torque Coefficient(N.m/A)	2.65	1.64	2.5	1.58	2.26	1.34	3.6	2.25
Rotor Inertia (Kg.㎡)	34x10^-4	34x10^-4	38x10^-4	38x10^-4	47x10^-4	47x10^-4	61x10^-4	61x10^-4
Line Resistance (Ω)	1.47	0.7	1.15	0.4	0.71	0.24	1.37	0.48
Line Inductance(mH)	7.8	3.5	6.4	2.42	4	1.45	8.6	3.26
Electrical Time Constant(Ms)	5.3	5	5.57	6	5.6	6	6.27	6.79
Insulation Class	F	F	F	F	F	F	F	F
Ingress Protection rating	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Ambient Temperature(°C)	-20--+40	-20--+40	-20--+40	-20--+40	-20--+40	-20--+40	-20--+40	-20--+40
Ambient Humidity	20--80%	20--80%	20--80%	20--80%	20--80%	20--80%	20--80%	20--80%
Weight(KG)	19.5	19.5	20.5	20.5	22.2	22.2	25.5	25.5

It can be customized according to your requirements, including parameters such as voltage, power, rotational speed, and installation dimensions.

Performance Parameter
TYPE	A180ST-M3843	A180ST-M2243	A180ST-M3837	A180ST-M2237	A180ST-M3855	A180ST-M2255	A180ST-M3875	A180ST-M2275
Rated Output (W)	4300	4300	3700	3700	5500	5500	7500	7500
Rated Voltage(V)	380	220	380	220	380	220	380	220
Rated Current(A)	10	16	10	16	12	19	20	32
Rated Speed(RPM)	1500	1500	1000	1000	1500	1500	1500	1500
Rated Torque(N.m)	27	27	35	35	35	35	48	48
Instantaneous Peak Torque(N.m)	67	67	70	70	70	70	96	96
Max. Motor EMF(V/1000r/min)	172	103	223	134	181	113	156	94
Torque Coefficient(N.m/A)	2.7	1.69	3.5	2.2	2.9	1.84	2.4	1.5
Rotor Inertia (Kg.㎡)	61x10^-4	61x10^-4	86x10^-4	86x10^-4	86x10^-4	86x10^-4	95x10^-4	95x10^-4
Line Resistance (Ω)	0.796	0.28	0.93	0.31	0.62	0.21	0.273	0.104
Line Inductance(mH)	4.83	1.74	9.1	3.28	4	1.57	2.14	0.77
Electrical Time Constant(Ms)	6	6.2	9.78	10.58	6.45	7.47	7.8	7.4
Insulation Class	F	F	F	F	F	F	F	F
Ingress Protection rating	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Ambient Temperature(°C)	-20--+40	-20--+40	-20--+40	-20--+40	-20--+40	-20--+40	-20--+40	-20--+40
Ambient Humidity	20--80%	20--80%	20--80%	20--80%	20--80%	20--80%	20--80%	20--80%
Weight(KG)	25.5	25.5	30.5	30.5	30.5	30.5	40	40

Quality Control

During the production of 380V Servo Motors, we focus on optimizing the electromagnetic design of the stator and rotor, precise dynamic balancing calibration, high-precision bearing selection, encoder installation accuracy, and full-load testing verification. Every motor from AURIC undergoes dynamic operation testing before leaving the factory to ensure stable torque output, normal current control, and temperature rise within a reasonable range.

Reasons to Choose AURIC

Precise Selection Support

We can provide matching suggestions based on load inertia, duty cycle, and acceleration/deceleration curves to avoid insufficient power issues.

Rigorous Factory Testing

Every AURIC 380V servo motor undergoes no-load and load operation tests to verify the motor's torque output, temperature rise performance, and encoder signal stability.

Batch Consistency Control

We use standardized production processes and testing standards to ensure stable performance in large-scale deliveries and reduce after-sales risks.

OEM/ODM Customization Support

We support customization of flange sizes, shaft extension types, encoder types, and cable interfaces to meet the structural requirements of different equipment.

High Technical Response Efficiency

We can provide technical communication support during the application phase to assist in resolving debugging and matching issues.

FAQ

1.What power range is the 380V servo motor suitable for?

Used in medium to high power industrial scenarios, suitable for automated equipment requiring high torque output or continuous operation. The specific power range can be confirmed based on application requirements.

2.Is a specific driver required?

It is recommended to use a compatible servo driver. Matching motor and driver parameters directly affects dynamic response and control accuracy.

3.Does it support high-frequency start-stop conditions?

Yes, it does. The 380V servo system has good acceleration and deceleration performance, suitable for frequent start-stop scenarios, but proper matching based on load inertia is necessary.

4.Is the temperature rise prone to excessive?

Under rated operating conditions, the temperature rise is controlled within a safe range. If long-term full load or high ambient temperature is expected, it is recommended to assess heat dissipation conditions in advance.

5.Are there multiple encoder types available?

Different resolution and feedback type options are supported, allowing selection of appropriate configurations based on control system requirements.

6.Does it support customized production?

Supported. Customization services are available, including installation dimensions, output shaft type, wiring methods, and adaptation to special environments.

If you are looking for a 380V Servo Motor, a high-power servo drive system, please contact us for sample testing and project quotation.
