Reducer Transmission

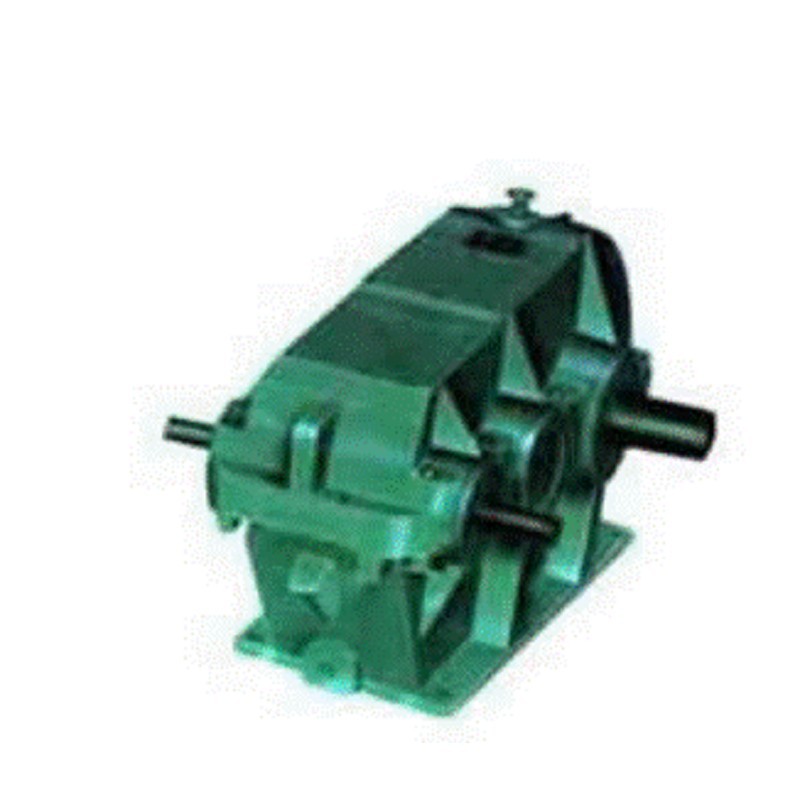

A Cylindrical Gear Reducer is a mechanical transmission device designed to reduce input speed and increase output torque through precision-engineered cylindrical gears. With high efficiency, durability, and smooth operation, it is widely used in heavy machinery, mining, metallurgy, conveyors, and automation equipment.





1. High Load Capacity
Gears are made of alloy steel (20CrMnTi / 42CrMo), carburized and quenched with surface hardness up to 58–62 HRC, ensuring excellent wear resistance.
Advanced gear tooth design distributes loads evenly, providing 20% higher torque capacity than conventional gearboxes.

2. High Efficiency & Low Noise
Gear accuracy meets ISO 1328 / DIN 6 standards, achieving transmission efficiency of 95–97%.
Helical gear design increases contact ratio, significantly reducing vibration and noise to meet industrial noise control standards.

3. Durable & Reliable Design
Robust housing made from high-strength cast iron (HT250/FC250) with ribbed structure for rigidity and vibration absorption.
Bearings from top brands (SKF/NSK) ensure stability under continuous heavy-duty operation.

4. Flexible Installation & Easy Maintenance
Available in horizontal, vertical, and flange-mounted configurations, adaptable to different layouts.
Modular design simplifies servicing, reducing downtime and maintenance costs.

5. International Standard Compliance
Designed and manufactured according to ISO, DIN, and AGMA standards, ensuring global compatibility.
Each gearbox undergoes 100% noise, backlash, and load testing before shipment.





Our gear reducers are widely used in:

• Mining & Metallurgy: crushers, mills, conveyors
• Cement & Construction: mixers, heavy-duty machinery
• Power & Energy: turbines, cooling systems, boilers
• Material Handling & Automation: conveyors, packaging lines
• Chemical & Environmental Engineering: pumps, agitators





• 20+ Years of Manufacturing Experience in gear transmission solutions.
• Exported to 40+ countries, trusted by OEM and industrial clients worldwide.
• Customizable gear ratios and torque options available.
• ISO 9001 certified with advanced quality inspection systems.









✅ Lower Maintenance Costs – wear-resistant materials extend service intervals.
✅ Longer Equipment Lifespan – stable performance under continuous operation.
✅ Reduced Downtime – modular design ensures easy repair and parts replacement.
✅ Better ROI – high transmission efficiency reduces energy consumption.





• Safe delivery in plywood cases with rust-proof protection.
• Flexible trade terms: FOB, CIF, DDP to major global ports.
• Standard lead time: 20–30 days for bulk orders.





Looking for a reliable Cylindrical Gear Reducer supplier?
👉 Contact us now for a free consultation and quotation.
We guarantee competitive factory prices, strict quality assurance, and on-time delivery.





The ZL (ZS) series reducers feature excellent mechanical performance, reliable operation, and easy maintenance. They also offer strong overload capacity, impact resistance, and low inertia torque, making them especially suitable for frequent lifting operations and both forward and reverse rotation.





Direct coupling connection
Flexible connection via chain or belt





Metallurgy, mining, cement, construction, chemical, textile, and light industry sectors.





• Gear transmission circumferential speed: ≤ 18 m/s
• High-speed shaft speed: ≤ 1500 rpm
• Working environment temperature: −40 °C to +45 °C
• Operation mode: Forward and reverse rotation
• Shaft end type: Cylindrical, connected with round-end flat keys

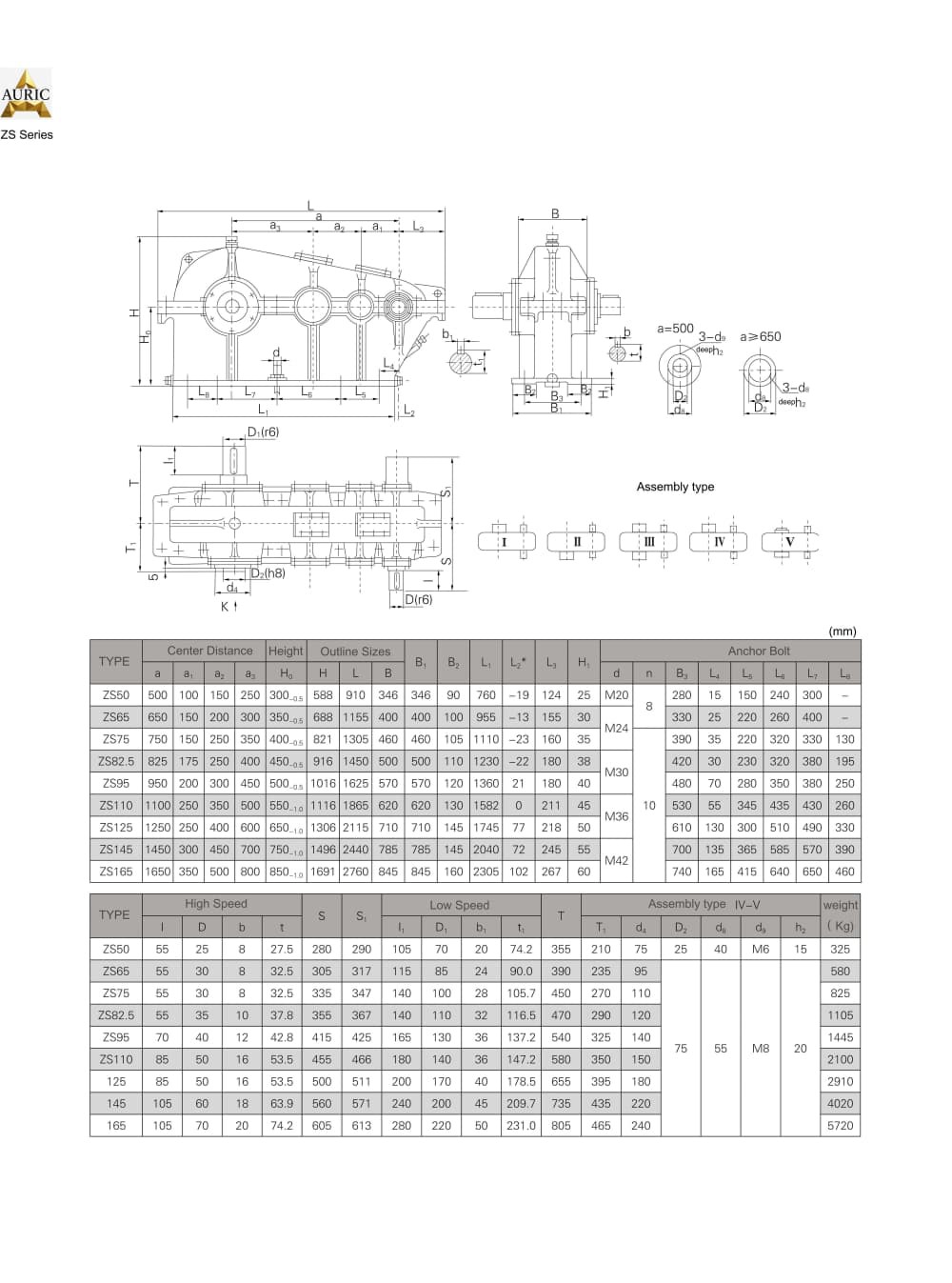

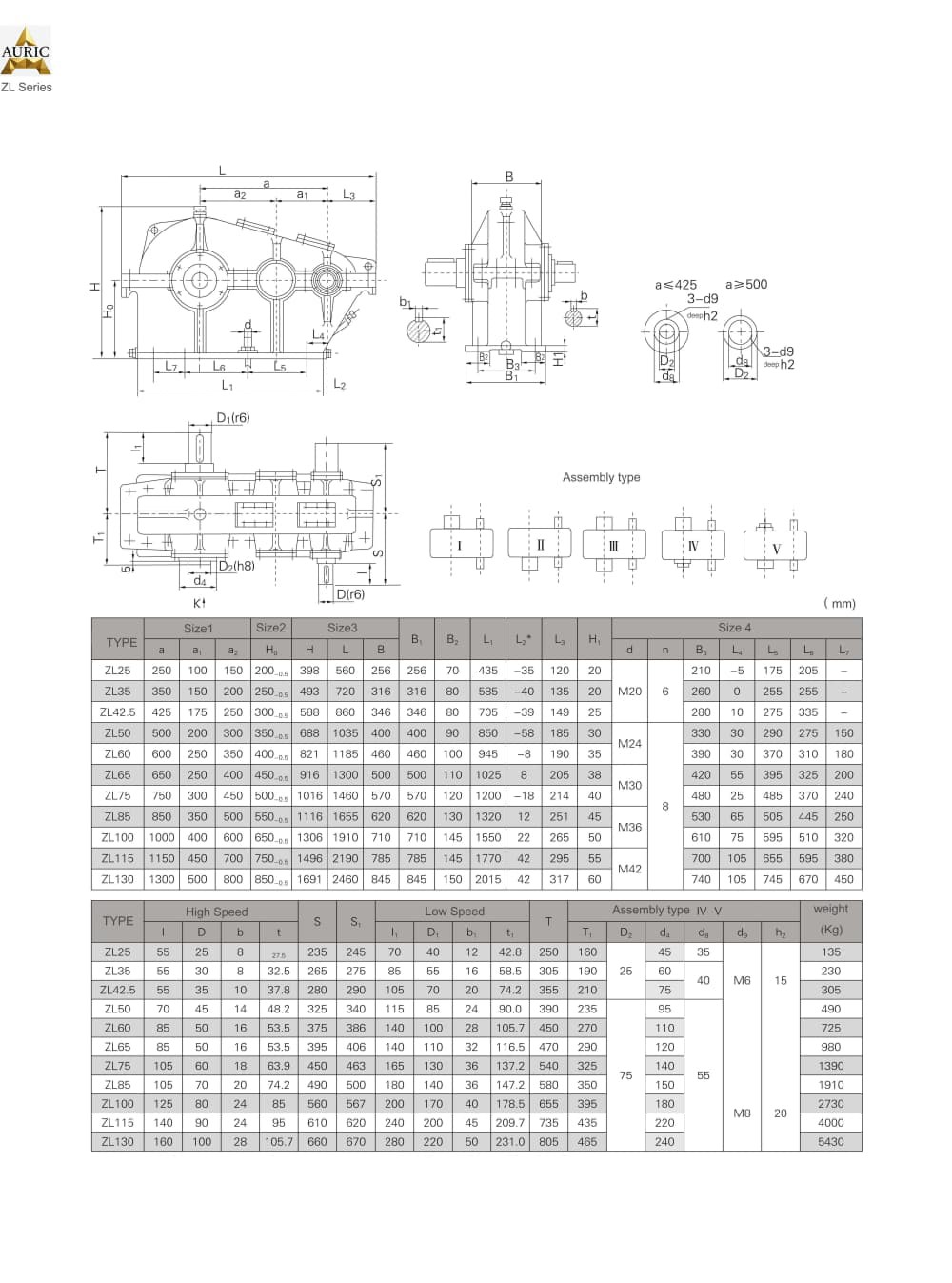

Sizes: 25, 35, 42.5, 50, 60, 65, 75, 85, 100, 115, 130

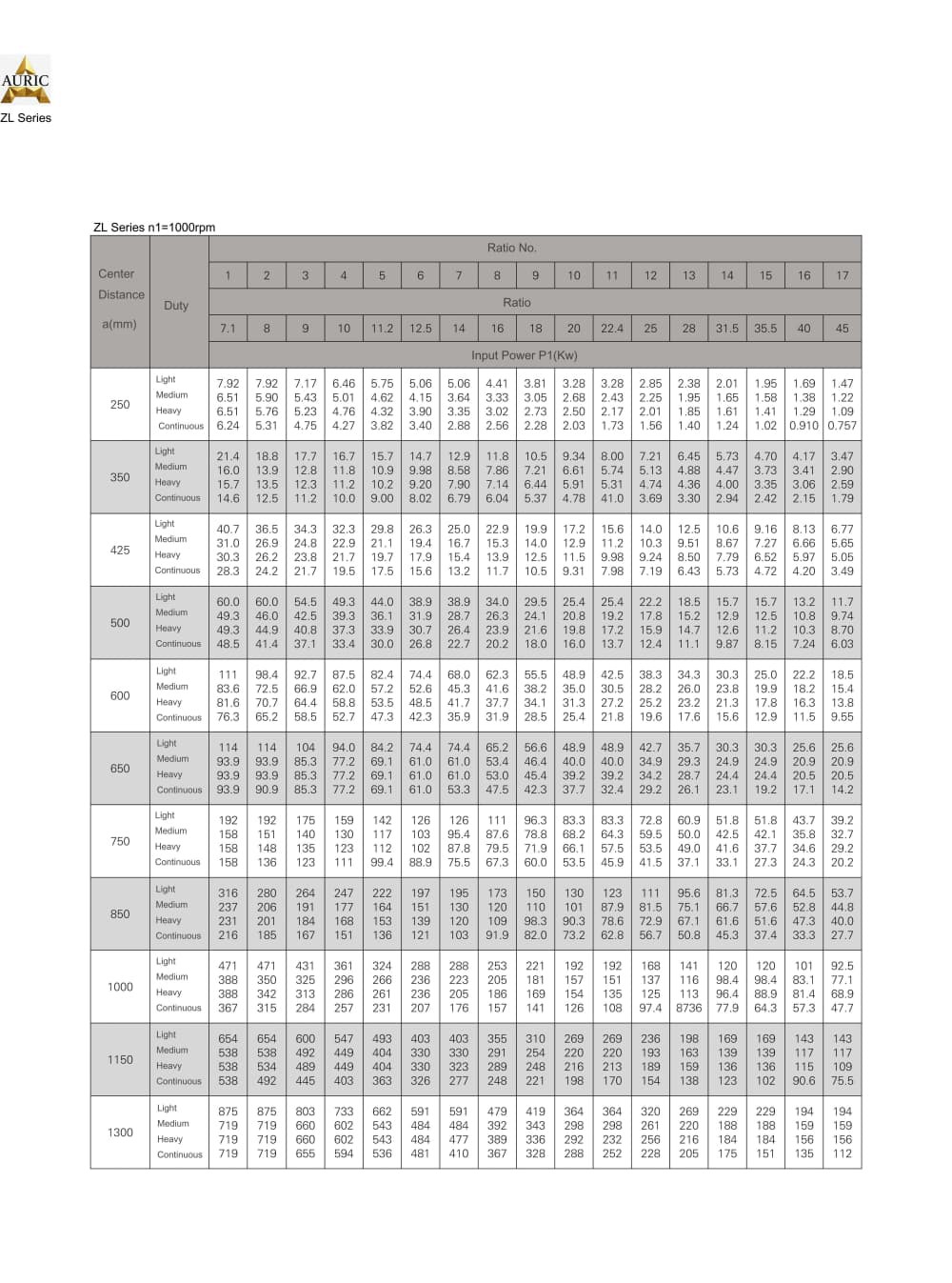

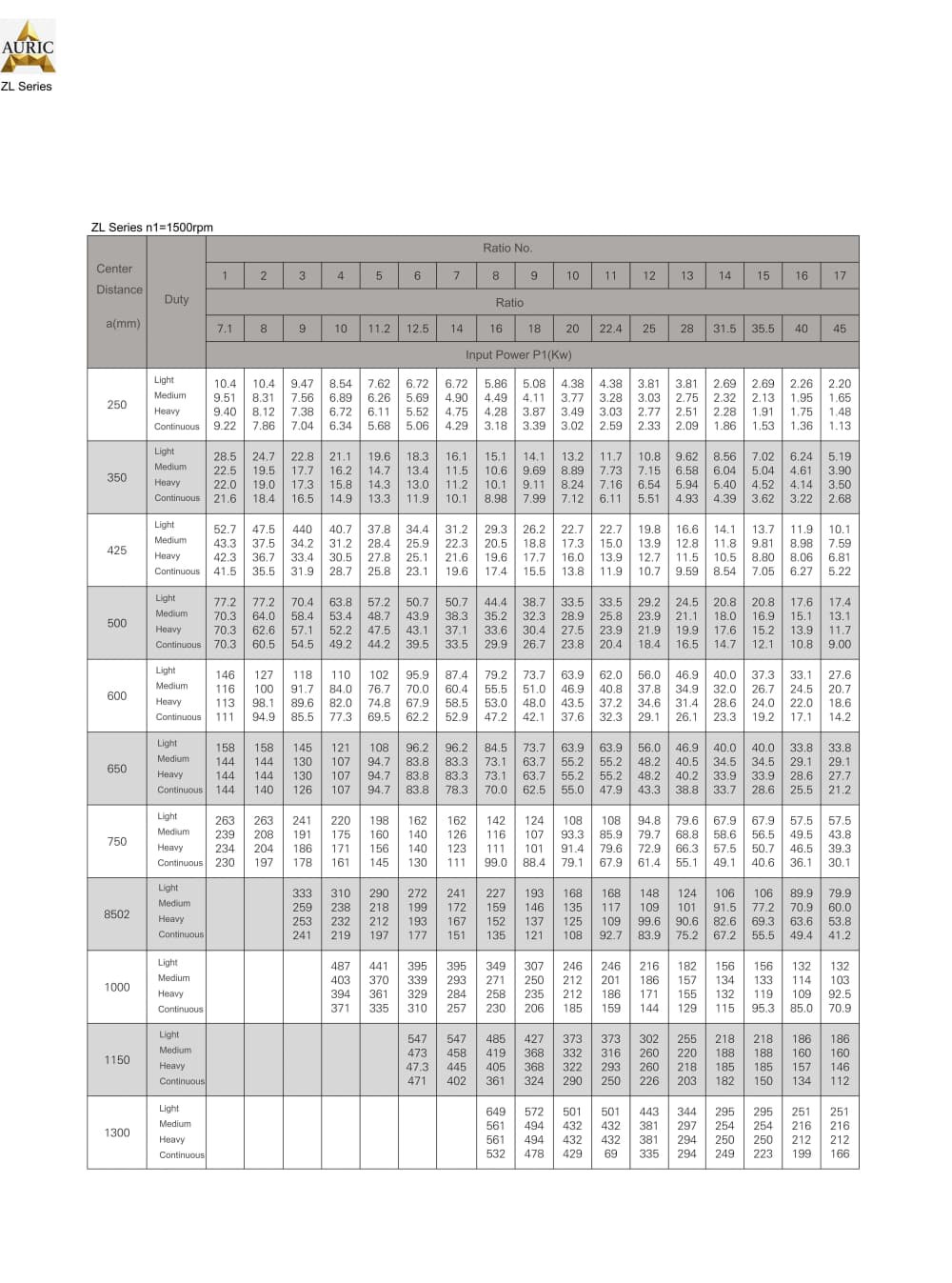

Gear ratios: 7.1–45 (17 ratios available)
Assembly types: 5 configurations





Sizes: 50, 65, 75, 82.5, 95, 110, 125, 145, 165

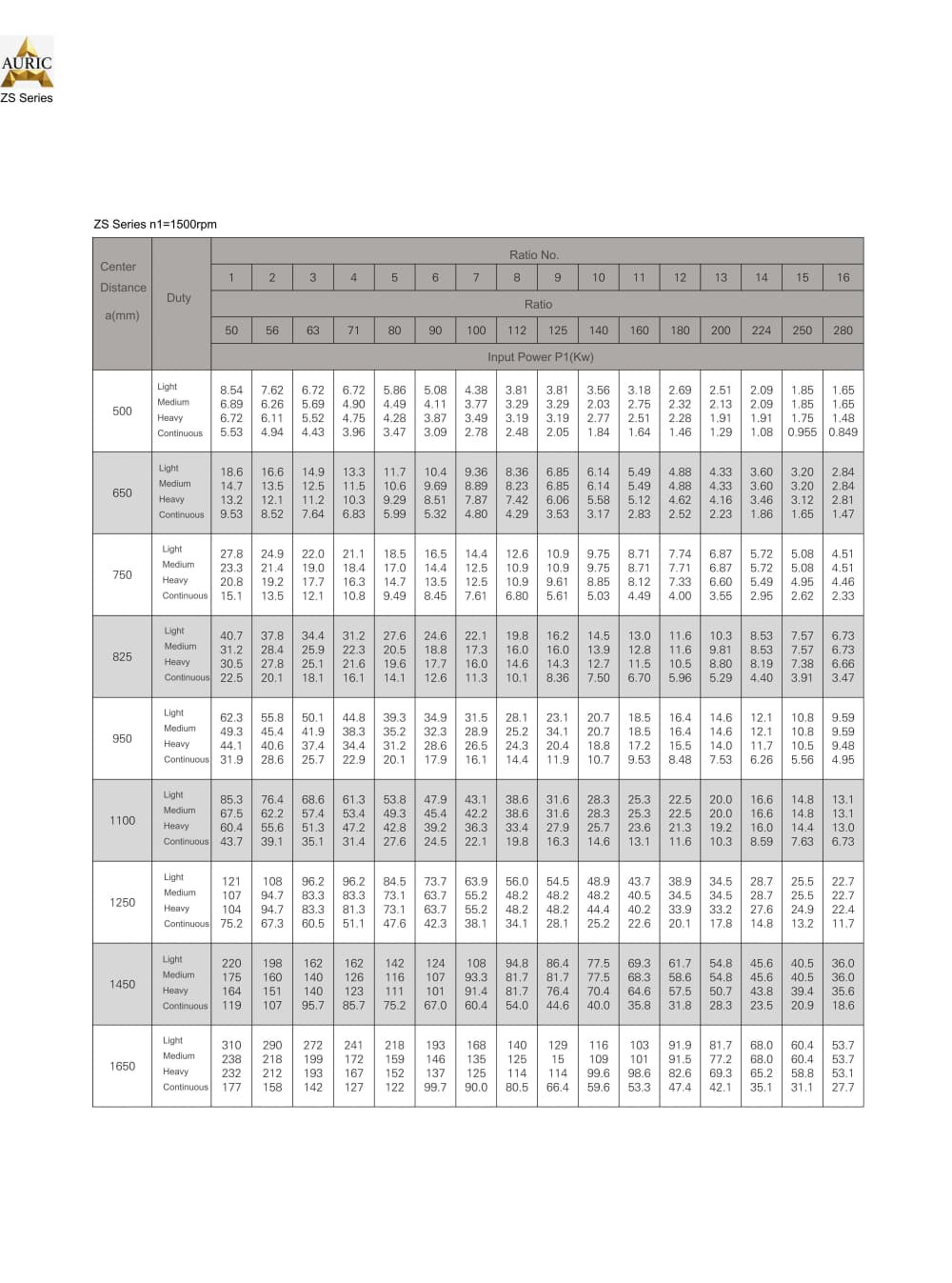

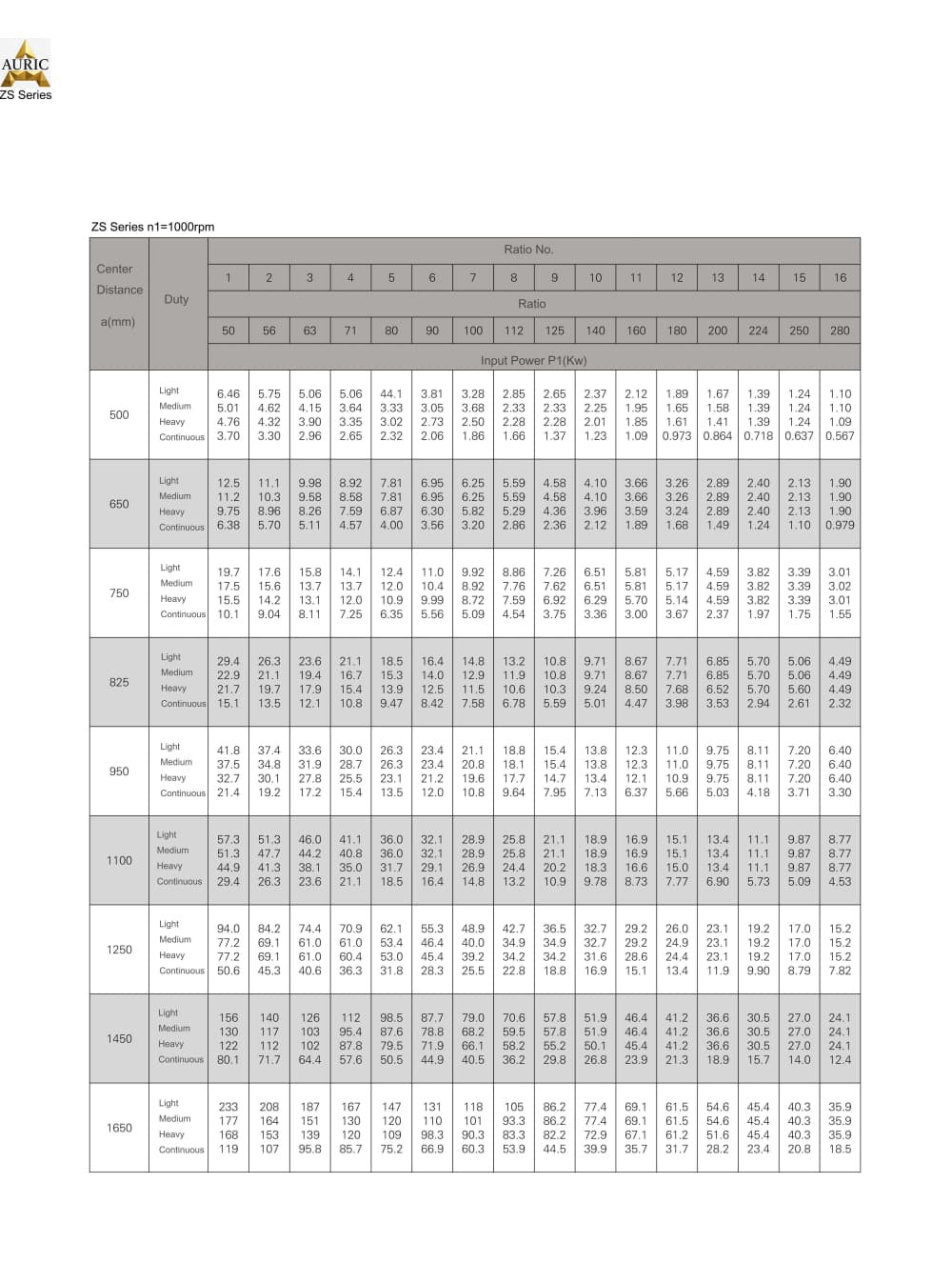

Gear ratios: 50–280 (16 ratios available)
Assembly types: 5 configurations
